The MD2-40ST is a 4-position shielded through-hole connector with a current rating of 2A. It features a lead-free design and is compliant with RoHS regulations. The connector is made of plastic with a silver-plated contact and a bronze contact material. It is available in bulk packaging and has a horizontal orientation.
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
CUI MD2-40ST technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Silver |
| Current Rating | 2A |
| Features | Shielded |
| Insulation Material | Plastic |
| Lead Free | Lead Free |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Orientation | Horizontal |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | MD2 |
| Shielding | Shielded |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
CUI MD2-40ST Datasheet
Download the complete datasheet for CUI MD2-40ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

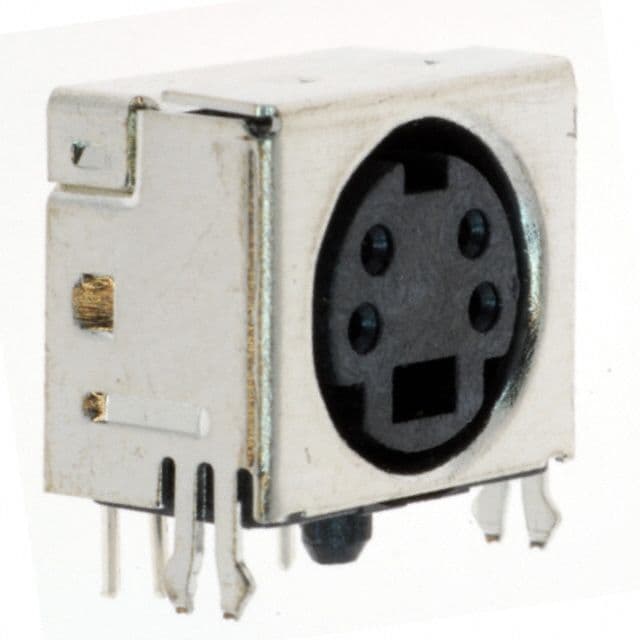

Product Images
