Cynergy3
DAT72415T
Relay; Reed Switch; SPNO; Tungsten Cntcts; 24VDC; 15kV Isol; PCB Mt/Coil Cn/Stud/WW HV
Current Rating2A
MountingThrough Hole, PCB, Panel
Quick Jump:
Technical Specifications
Cynergy3 DAT72415T technical specifications.
General
Coil Current
68.6mA
Coil Resistance
350R
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
2A
Contact Material
Tungsten
Current Rating
2A
Depth
15.8mm
Height
18.5mm
Length
60mm
Life (Hours)
100000Hour
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Through Hole, PCB, Panel
Number of Poles
1
Operate Time
3ms
Relay Type
Reed
Release Time
2ms
RoHS Compliant
No
Series
D
Termination
Turret
Throw Configuration
SPST
DC Rated Voltage
24V
Compliance
RoHS
Not Compliant
Datasheet
Cynergy3 DAT72415T Datasheet
Download the complete datasheet for Cynergy3 DAT72415T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

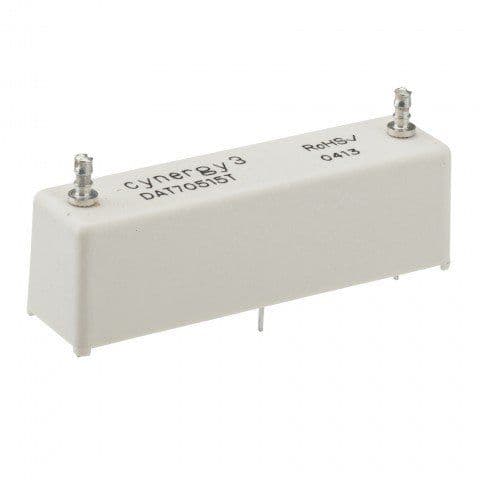

Product Images
