9Mb ZBT SRAM, 256K x 36 configuration, offers a 3.5ns access time and operates at up to 166MHz. This synchronous, parallel interface memory features four ports and a 3.3V operating supply voltage, with a range of 3.135V to 3.6V. Packaged in a 119-ball PBGA, it supports surface mounting and operates within a temperature range of 0°C to 70°C.
Frequency166MHz
PackageBGA
Current180mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1354C-166BGC technical specifications.
General
Access Time
3.5ns
Access Time-Max
3.5ns
Address Bus Width
18b
Package/Case
BGA
Density
9Mb
Frequency
166MHz
Interface
Parallel
Max Frequency
166MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Memory Size
9Mb
Memory Type
SDR, , Volatile, SRAM
Min Supply Voltage
3.135V
Mount
Surface Mount
Number of Ports
4
Number of Words
256000
Operating Supply Voltage
3.3V
Package Quantity
84
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
No
Series
NoBL™
Supply Current
180mA
Sync/Async
Synchronous
Word Size
36b
Compliance
RoHS
Not CompliantNo
Datasheet
Cypress CY7C1354C-166BGC Datasheet
Download the complete datasheet for Cypress CY7C1354C-166BGC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

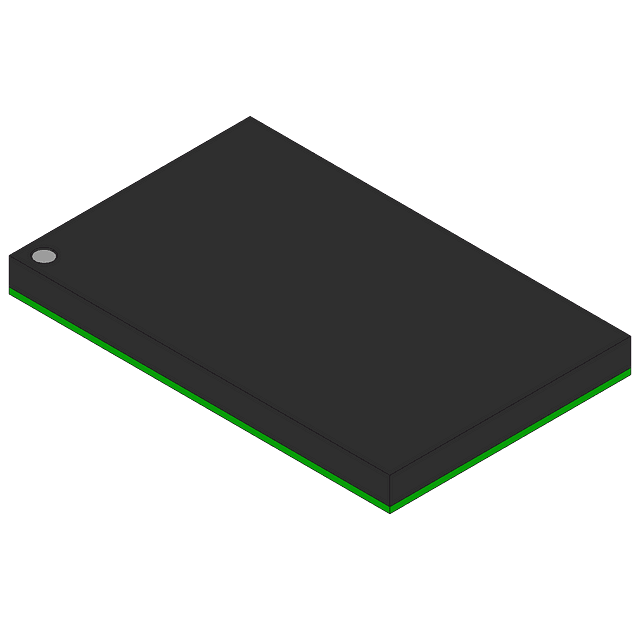

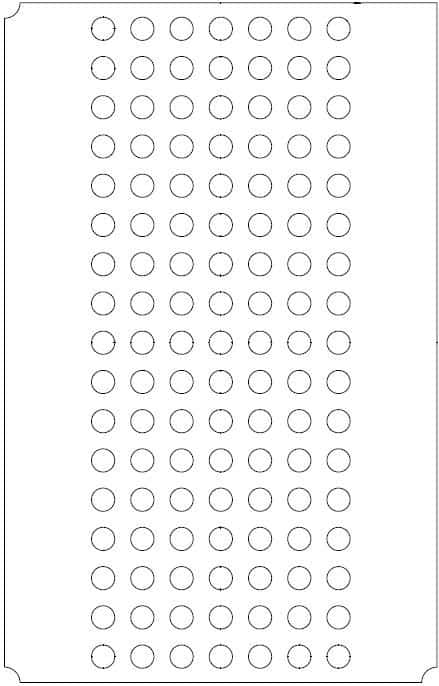

Product Images
