High-speed 9Mb Cache SRAM, featuring a 3.5ns access time and 166MHz maximum frequency. This synchronous, volatile memory component offers a parallel interface with an 18-bit address bus and a 36-bit word size. It operates with a 3.3V supply voltage, supporting a range of 3.135V to 3.6V, and is housed in a PBGA119 surface-mount package. Designed for demanding applications, it operates within a temperature range of 0°C to 70°C.
Frequency166MHz
PackageBGA
Current180mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1366C-166BGC technical specifications.
General
Access Time
3.5ns
Address Bus Width
18b
Package/Case
BGA
Density
9Mb
Frequency
166MHz
Interface
Parallel
Max Frequency
166MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Memory Size
9Mb
Memory Type
SDR, , Volatile, SRAM
Min Supply Voltage
3.135V
Mount
Surface Mount
Number of Ports
4
Number of Words
256000
Operating Supply Voltage
3.3V
Package Quantity
84
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
No
Supply Current
180mA
Sync/Async
Synchronous
Word Size
36b
Compliance
RoHS
Not CompliantNo
Datasheet
Cypress CY7C1366C-166BGC Datasheet
Download the complete datasheet for Cypress CY7C1366C-166BGC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

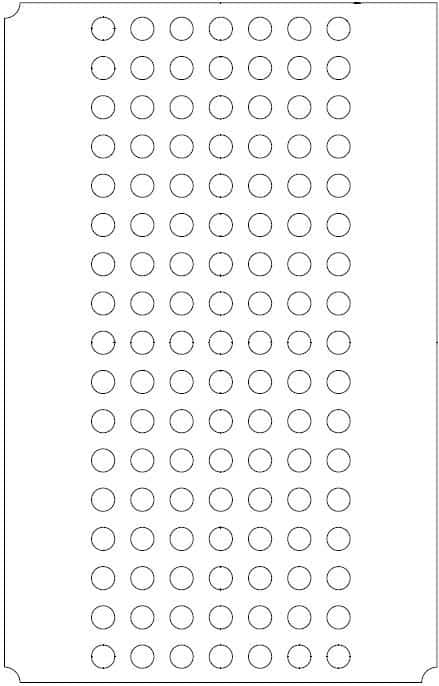

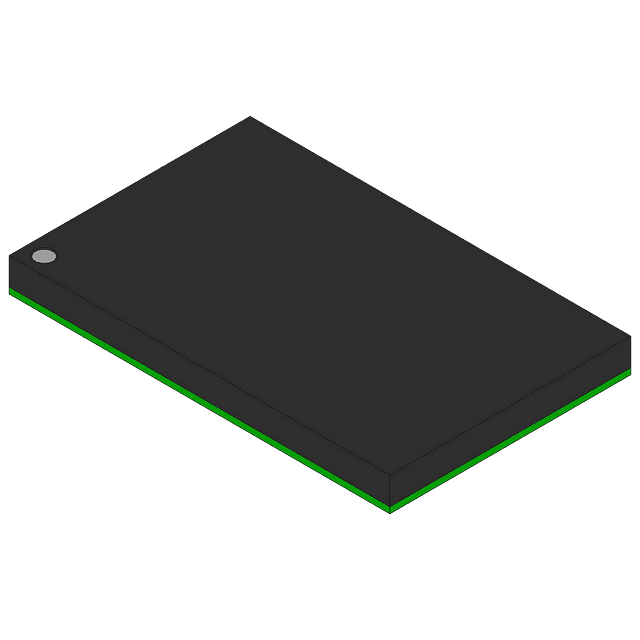

Product Images
