18Mb ZBT SRAM with 3ns access time, 200MHz maximum frequency, and a 36-bit word size. This synchronous, volatile memory features a 19-bit address bus and 512,000 words, supporting a parallel interface. Packaged in an FBGA for surface mounting, it operates from 2.375V to 2.625V and has a maximum operating temperature of 70°C.
Frequency200MHz
PackageFBGA
Current300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1370DV25-200BZC technical specifications.
General
Access Time
3ns
Address Bus Width
19b
Package/Case
FBGA
Density
18Mb
Frequency
200MHz
Interface
Parallel
Lead Free
Contains Lead
Max Frequency
200MHz
Max Operating Temperature
70°C
Memory Size
18Mb
Memory Type
SDR, , Volatile, SRAM
Min Operating Temperature
0°C
Max Supply Voltage
2.625V
Min Supply Voltage
2.375V
Mount
Surface Mount
Number of Ports
4
Number of Words
512000
Operating Supply Voltage
2.5V
Package Quantity
136
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
No
Series
NoBL™
Supply Current
300mA
Sync/Async
Synchronous
Word Size
36b
Compliance
RoHS
Not CompliantNo
Datasheet
Cypress CY7C1370DV25-200BZC Datasheet
Download the complete datasheet for Cypress CY7C1370DV25-200BZC to view detailed technical specifications.
No datasheet is available for this part.

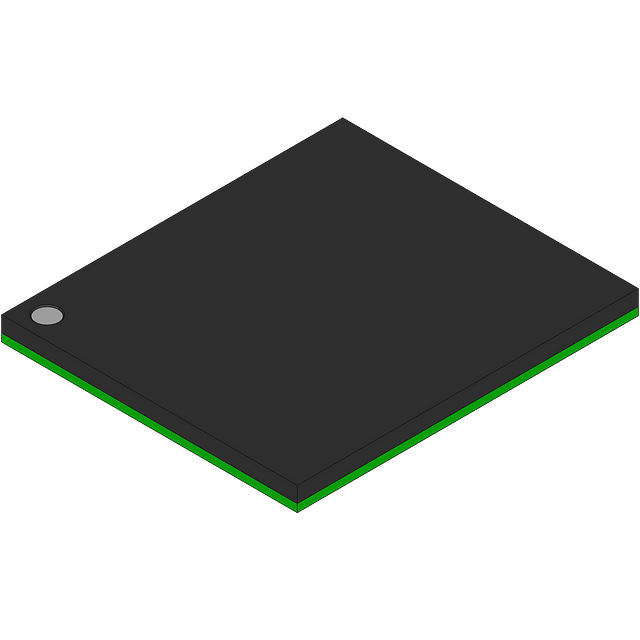

Product Images
