Surface mount single color LED emitter, yellow illumination, featuring a 0603 (1608 metric) package. This component offers a 140° viewing angle and a luminous intensity of 130mcd at a 20mA forward current. The water clear, flat rectangular lens measures 1.6mm x 0.8mm with a 0.7mm height. Operating temperature range is -30°C to 100°C, with a 5V reverse voltage and 55mW power dissipation. RoHS compliant and supplied on tape and reel.
Package0603
MountingSurface Mount
Power55mW
Quick Jump:
Technical Specifications
Dialight 598-8050-107F technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Color
Yellow
Depth
0.8mm
Forward Current
20mA
Height
0.7mm
Illumination Color
Yellow
Lead Free
Lead Free
Length
1.6mm
Lens Color
Colorless, Clear
Lens Size
0.8mm
Lens Style
Flat, Rectangular, Diffused, Colorless, WATER CLEAR
Lens Transparency
Clear
Luminous Intensity
130mcd
Max Operating Temperature
100°C
Min Operating Temperature
-30°C
Mount
Surface Mount
Number of Elements
1
Number of LEDs
1
Package Quantity
4000
Packaging
Tape and Reel
Power Dissipation
55mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Voltage
5V
RoHS Compliant
Yes
Series
598
Viewing Angle
140°
Wavelength
590nm
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Dialight 598-8050-107F Datasheet
Download the complete datasheet for Dialight 598-8050-107F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

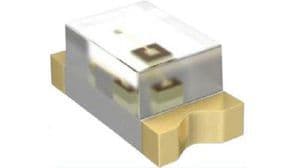

Product Images
