Surface mount single color LED emitter, green illumination, featuring a 0603 (1608 metric) package with a 1.6mm length, 0.8mm width, and 0.7mm height. This RoHS compliant component offers a 140° viewing angle, 525nm wavelength, and 300mcd luminous intensity at a 20mA forward current. It operates within a -30°C to 100°C temperature range and has a 5V reverse voltage. The water clear, diffused, flat lens style ensures optimal light output.
Package0603
MountingSurface Mount
Power70mW
Quick Jump:
Technical Specifications
Dialight 598-8081-107F technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Color
Green
Depth
0.8mm
Forward Current
20mA
Height
0.7mm
Illumination Color
Green
Lead Free
Lead Free
Length
1.6mm
Lens Color
Colorless, Clear
Lens Size
0.8mm
Lens Style
Flat, Rectangular, Diffused, Colorless, Clear, WATER CLEAR
Lens Transparency
Clear
Luminous Intensity
300mcd
Max Operating Temperature
100°C
Min Operating Temperature
-30°C
Mount
Surface Mount
Number of Elements
1
Number of LEDs
1
Package Quantity
4000
Packaging
Tape and Reel
Power Dissipation
70mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Breakdown Voltage
5V
Reverse Voltage
5V
RoHS Compliant
Yes
Series
598
Viewing Angle
140°
Wavelength
525nm
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Dialight 598-8081-107F Datasheet
Download the complete datasheet for Dialight 598-8081-107F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

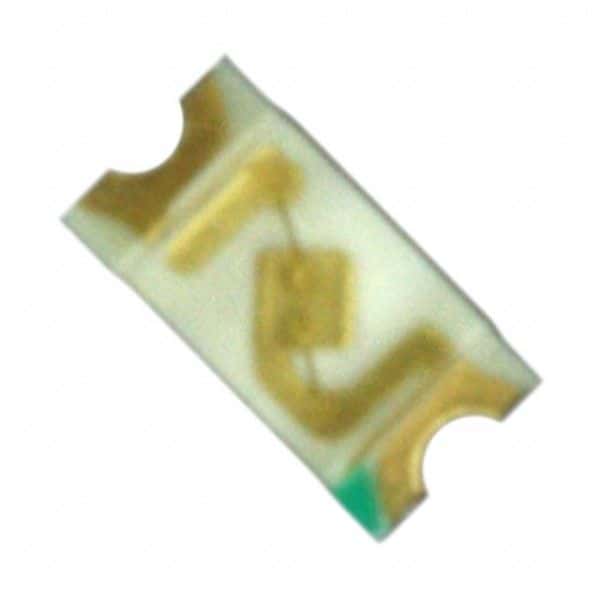

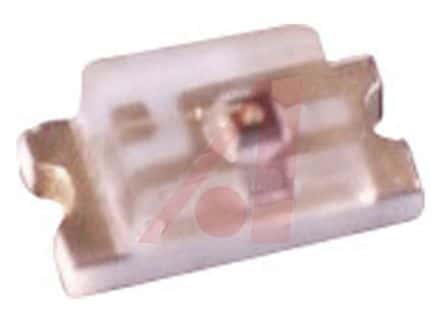

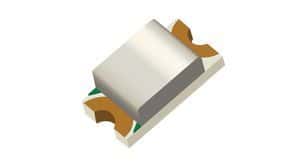

Product Images
