Surface mount yellow LED emitter, 0805 package, featuring a 140° viewing angle and 595nm wavelength. This single-element LED offers 130mcd luminous intensity at a 20mA forward current. Constructed with a water clear, diffused lens, it operates within a -30°C to 85°C temperature range and is RoHS compliant. The component measures 2mm x 1.25mm x 0.8mm with a 1.25mm lens size.
Package0805
MountingSurface Mount
Power55mW
Quick Jump:
Technical Specifications
Dialight 598-8140-107F technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Color | Yellow |
| Depth | 1.25mm |
| Forward Current | 20mA |
| Height | 0.8mm |
| Illumination Color | Yellow |
| Lead Free | Lead Free |
| Length | 2mm |
| Lens Color | Colorless, Clear |
| Lens Size | 1.25mm |
| Lens Style | Flat, Rectangular, Diffused, Colorless, Clear, WATER CLEAR |
| Lens Transparency | Clear |
| Luminous Intensity | 130mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 55mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | 598 |
| Viewing Angle | 140° |
| Wavelength | 595nm |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Dialight 598-8140-107F Datasheet
Download the complete datasheet for Dialight 598-8140-107F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

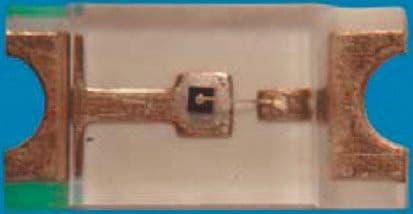

Product Images
