General purpose rectifier diode with 1A average rectified current and 50V repetitive reverse voltage. Features 1A forward current, 30A peak non-repetitive surge current, and 5µA max reverse current. Silicon junction technology in a DO-41 plastic package with through-hole mounting. Operating temperature range from -65°C to 150°C. RoHS compliant and lead-free.
PackageDO-41
Capacitance20pF
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Diodes UF1001-T technical specifications.
General
Average Rectified Current
1A
Capacitance
20pF
Package/Case
DO-41
Current Rating
1A
Forward Current
1A
Height
2.72mm
Lead Free
Lead Free
Length
5.21mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
50V
Max Reverse Current
5uA
Max Reverse Voltage (DC)
50V
Max Surge Current
30A
Mount
Through Hole
Output Current
1A
Package Quantity
5000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
30A
Polarity
Standard
Radiation Hardening
No
Reverse Recovery Time
50ns
Reverse Recovery Time-Max
50ns
Reverse Voltage (DC)
50V
RoHS Compliant
Yes
Termination
Through Hole
DC Rated Voltage
50V
Weight
0.010582oz
Width
2.72mm
Compliance
RoHS
Compliant
Datasheet
Diodes UF1001-T Datasheet
Download the complete datasheet for Diodes UF1001-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

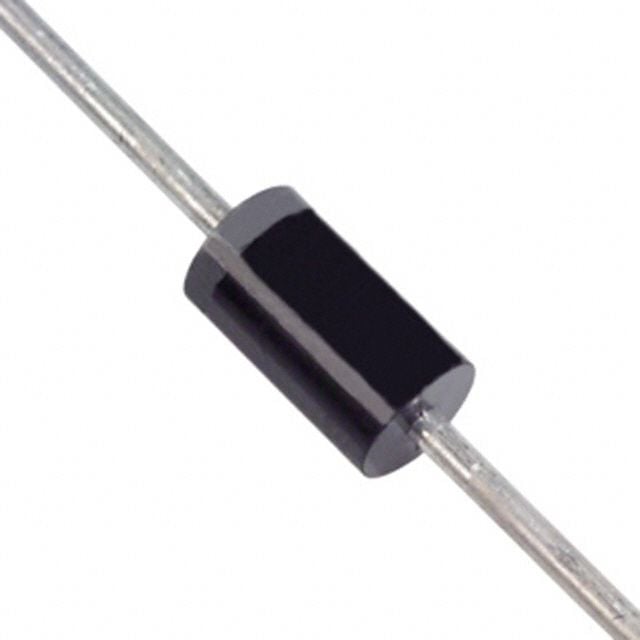

Product Images
