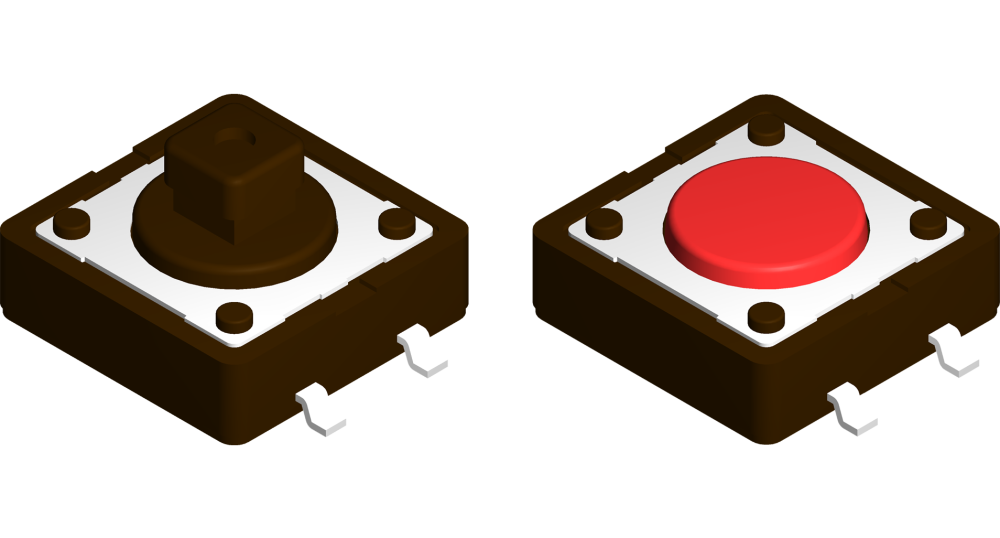

Tactile microswitch supports a 50 mA contact rating at 12 VDC and uses a vertical-push actuator configuration. The red-force version has a 260 gf operating force, 0.35 mm stroke, and 500,000-cycle life rating. Electrical insulation is rated at 100 MΩ minimum at 500 VDC, with 100 mΩ maximum contact resistance and 250 VAC dielectric strength for one minute. The switch operates from -40°C to +85°C and has the same rated storage temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diptronics DTSM24R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Rating | 50 mA, 12 V DC |
| Contact Resistance | 100 maxmΩ |
| Insulation Resistance | 100 min at 500 V DCMΩ |
| Dielectric Strength | 250 V AC for 1 minute |
| Operating Force | 260gf |
| Operating Force | 2.6N |
| Stroke | 0.35mm |
| Operating Life | 500000cycles |
| Operating Direction | Vertical Push |
| H Dimension | 7.3(SQ.)x3.8mm |
| Operating Temperature | -40 to +85°C |
| Storage Temperature | -40 to +85°C |
| Contacts Configuration | SPST-NO |
| Number of Positions | 2 |
| Body Dimensions | 12x12mm |
| Mounting | SMT |
Download the complete datasheet for Diptronics DTSM24R to view detailed technical specifications.
