MountingThrough Hole, Brackets
Quick Jump:
Technical Specifications
E-Switch EG2315 technical specifications.
General
Actuator Length
3.5mm
Actuator Type
Standard
Contact Current Rating
200mA
Contact Material
Copper Alloy
Contact Plating
Silver
Electrical Life
10000Cycles
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Through Hole, Brackets
Number of Positions
3
Orientation
Right Angle
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EG
Switch Function
On-On-On
Switch Travel
2mm
Termination
PC Pin
Throw Configuration
DP3T
Voltage Rating (AC)
30V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
E-Switch EG2315 Datasheet
Download the complete datasheet for E-Switch EG2315 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

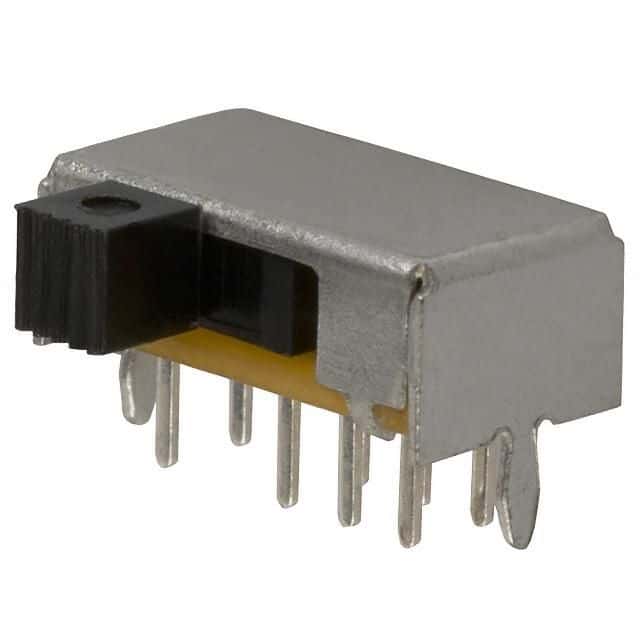

Product Images
