SMD Tactile Switch, SPST, Off-Mom function, featuring a 6mm round button with a 0.7mm nylon actuator. This component offers a 0.05A current rating at 12VDC, with a 2.55N operating force and 0.25mm travel. It boasts a mechanical and electrical life of 100,000 cycles and utilizes silver-plated bronze contacts. Supplied in tape and reel packaging, this RoHS compliant switch is designed for surface mount applications.
Storage6mm
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
E-Switch TL3301NF260QJ technical specifications.
General
Actuator Length
0.7mm
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Material
Bronze, Silver
Contact Plating
Silver
Current Rating
50mA
Electrical Life
100000Cycles
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
12V
Mount
Surface Mount
Number of Positions
2
Operating Force
260gf
Orientation
Straight
Package Quantity
1100
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
TL3301
Size
6mm
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
J-Bend
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL3301NF260QJ Datasheet
Download the complete datasheet for E-Switch TL3301NF260QJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

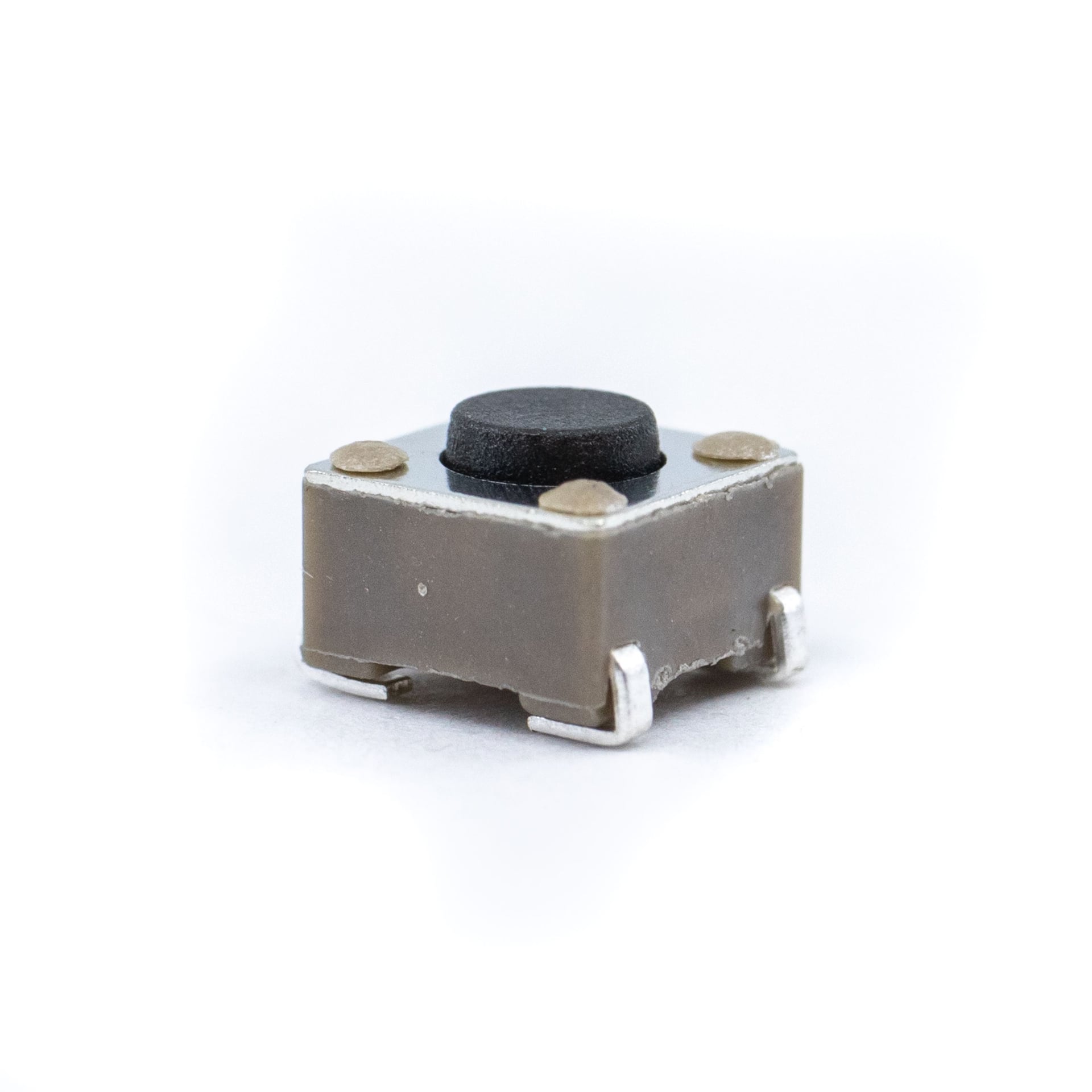

Product Images
