SPST momentary tactile keypad switch featuring a 50V DC voltage rating and 50mA current rating. Surface mountable with straight gull wing termination, this switch offers a 2.94N (300gf) operating force and 0.5mm travel. Constructed with a nylon actuator and silver contacts with bronze plating, it boasts an electrical and mechanical life of 50,000 and 500,000 cycles respectively. Operating across a temperature range of -40°C to 85°C, this non-illuminated component is supplied in tape and reel packaging.
Storage7.2mm
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
E-Switch TL6120CF300QG technical specifications.
General
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Material
Silver
Contact Plating
Bronze
Current Rating
50mA
Electrical Life
50000Cycles
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
50V
Mechanical Life
500000Cycles
Mount
Surface Mount
Operating Force
300gf
Orientation
Straight
Package Quantity
700
Packaging
Tape and Reel
Series
TL6120
Size
7.2mm
Switch Function
Off-Mom
Switch Travel
0.5mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL6120CF300QG Datasheet
Download the complete datasheet for E-Switch TL6120CF300QG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

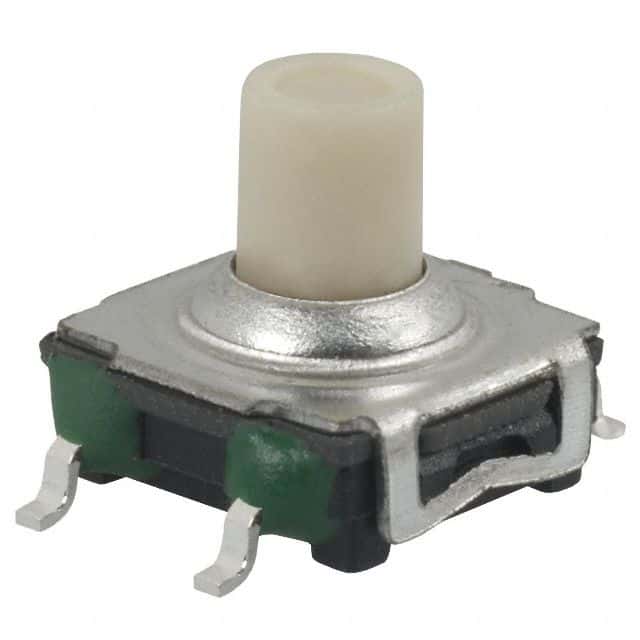

Product Images
