The Eaton PDB series terminal block is a 4-pin, 4-position, 4-pole device with a maximum voltage rating of 600V DC and a maximum current rating of 310A. It features a straight orientation and a screw termination. The terminal block is available in a bulk packaging quantity of 24 units. It is RoHS compliant and has a weight of 1.2lb. The Eaton PDB series is suitable for use in a variety of applications, including those requiring high voltage and current ratings.
Voltage Rating600V
Current Rating310A
Quick Jump:
Technical Specifications
Eaton 16005-4 technical specifications.
General
| Color | Black |
| Current Rating | 310A |
| Max Voltage Rating (DC) | 600.6kV |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Poles | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 24 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | PDB |
| Termination | Screw |
| Voltage Rating | 600V |
| Weight | 1.2lb |
Compliance
| RoHS | Compliant |
Datasheet
Eaton 16005-4 Datasheet
Download the complete datasheet for Eaton 16005-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

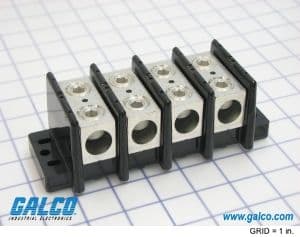

Product Images
