Eaton
S506-1.6-R

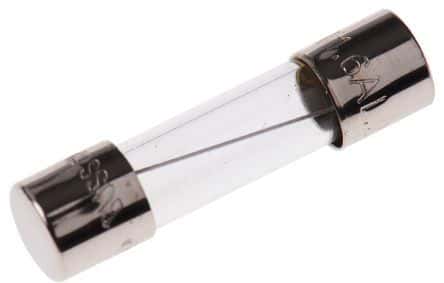

Electric Fuse, Time Delay Blow, 1.6A, 250VAC, 35A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT
Voltage Rating250V
Current Rating1.6A
MountingHolder
Quick Jump:
Technical Specifications
Eaton S506-1.6-R technical specifications.
General
Approvals
CSA, VDE, cULus, CCC, PSE, BSI, SEMKO, IMQ, cURus
Blow Characteristic
TIME DELAY
Body Material
Glass
Current Rating
1.6A
DC Cold Resistance
42.5mR
Diameter
5mm
Fuse Current
1.6A
Fuse Size
5 x 20mm
Length
0.787inch
Max Voltage Rating (AC)
250V
Mount
Holder
Package Quantity
5
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
S506
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Eaton S506-1.6-R Datasheet
Download the complete datasheet for Eaton S506-1.6-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
