Axial fan, 25mm x 8mm, delivers 1.9 CFM airflow at 9000 RPM. Features sleeve bearing, 12VDC operating voltage, and 500mW power consumption. Constructed from plastic with a 160mm lead termination, this fan operates between 14°C and 70°C with a noise level of 15 dBA. Mountable via flanges, it is lead-free and packaged in bulk.
FrequencyNot RequiredHz
PackageAxial
Storage25mm
Voltage Rating12V
Quick Jump:
Technical Specifications
Ebm-Papst 252N technical specifications.
General
Airflow
1.9CFM
Bearing Type
Sleeve
Package/Case
Axial
Depth
25mm
Height
8mm
Lead Free
Lead Free
Lead Length
160mm
Length
25mm
Material
Plastic
Max Operating Temperature
70°C
Min Operating Temperature
14°C
Max Power Dissipation
500mW
Mount
Flanges
Noise
15dBA
Noise Level
15
dBA
Operating Frequency
Not RequiredHz
Operating Supply Voltage
12V
Package Quantity
25
Packaging
Bulk
Power Consumption
500mW
Radiation Hardening
No
Reach SVHC Compliant
No
RPM
9000RPM
Series
250
Size
25mm
Speed
9000RPM
Termination
Leads
Thickness
8mm
Voltage Rating
12V
Weight
0.011lb
Width
25mm
Compliance
RoHS
Compliant
Datasheet
Ebm-Papst 252N Datasheet
Download the complete datasheet for Ebm-Papst 252N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

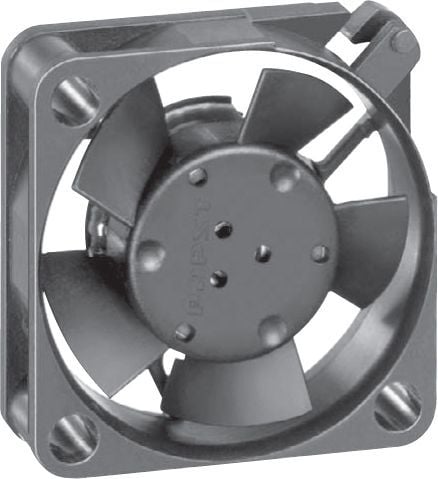

Product Images
