Axial fan, 70mm x 15mm, delivers 25.9 CFM airflow at 5300 RPM. Features sleeve bearing, 12VDC operating voltage, and 1.7W power consumption. Constructed with PVC and plastic materials, it operates between -4°C and 70°C. Approvals include UL, CSA, VDE, and CE.
FrequencyNot RequiredHz
PackageAxial
Storage70mm
Voltage Rating12V
Quick Jump:
Technical Specifications
Ebm-Papst 712F technical specifications.
General
Airflow
25.9CFM
Approvals
UL, CSA, VDE, CE
Bearing Type
Sleeve
Package/Case
Axial
Color
Black
Current Rating
140mA
Depth
70mm
Height
15mm
Lead Free
Contains Lead
Length
70mm
Material
PVC, Plastic
Max Operating Temperature
70°C
Min Operating Temperature
-4°C
Max Power Dissipation
1.7W
Mount
Flanges
Noise
38dBA
Noise Level
38 dB
Operating Frequency
Not RequiredHz
Operating Supply Voltage
12V
Package Quantity
25
Packaging
Bulk
Power Consumption
1.7W
Radiation Hardening
No
Reach SVHC Compliant
No
RPM
5300RPM
Series
700F
Size
70mm
Speed
5300RPM
Termination
Leads
Thickness
15mm
Voltage Rating
12V
Weight
0.117lb
Width
70mm
Compliance
RoHS
Compliant
Datasheet
Ebm-Papst 712F Datasheet
Download the complete datasheet for Ebm-Papst 712F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

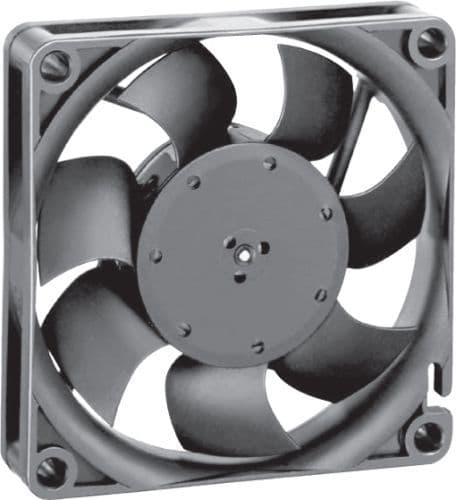

Product Images
