The 8414N/2GH axial fan from Ebm-Papst features a sleeve bearing and operates within a temperature range of -20°C to 70°C. It has a power consumption of 2.8W and an airflow of 46.5CFM at 3600RPM. The fan measures 80x80x25mm and weighs 95g. It is designed for use with a 24V operating supply voltage.
Frequency3600RPM
PackageAxial
Power2.8W
Quick Jump:
Technical Specifications
Ebm-Papst 8414N/2GH technical specifications.
General
| Airflow | 46.5CFM |
| Bearing Type | Sleeve |
| Package/Case | Axial |
| Depth | 25mm |
| Height | 80mm |
| Lead Length | 310mm |
| Material | Plastic |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Noise Level | 37 dBA |
| Operating Supply Voltage | 24V |
| Power Consumption | 2.8W |
| Reach SVHC Compliant | No |
| Series | 8400N |
| Speed | 3600RPM |
| Weight | 95g |
| Width | 80mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 8414N/2GH Datasheet
Download the complete datasheet for Ebm-Papst 8414N/2GH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

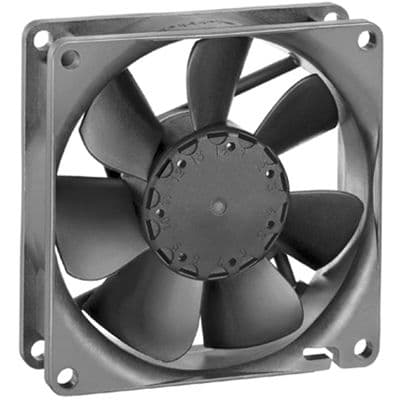

Product Images
