100W DIN Rail Power Supply with a 12V nominal output voltage and 2.5A maximum output current. Features a single output, 85V to 264V AC input voltage rating, and operates across a -10°C to 60°C temperature range. This power supply offers a 2.5A output current and 100W output power, with dimensions of 2.95 inches in height, 1.77 inches in width, and 91mm in length.
Frequency63Hz
Current Rating2.5A
MountingDIN Rail
Power100W
Quick Jump:
Technical Specifications
Emerson SDP2-12-100T technical specifications.
General
Current - Output 1
3A
Current Rating
2.5A
Frequency
63Hz
Height
2.95inch
Length
91mm
Max Current Rating
600mA
Min Input Voltage (AC)
85V
Max Operating Temperature
60°C
Min Operating Temperature
-10°C
Max Output Current
2.5A
Max Output Power
100W
Mount
DIN Rail
Nominal Output Voltage
12V
Number of Outputs
1
Output Current
2.5A
Output Power
100W
Output Voltage
12V
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Voltage - Output 1
12V
Voltage Rating (AC)
264V
DC Rated Voltage
375V
Width
1.77inch
Compliance
RoHS
Compliant
Datasheet
Emerson SDP2-12-100T Datasheet
Download the complete datasheet for Emerson SDP2-12-100T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

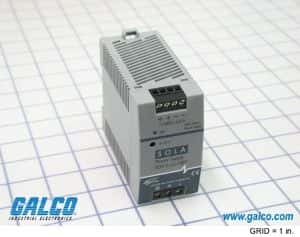

Product Images
