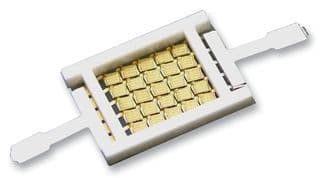

The ENFISUNOTAGARRAYBLUE is a 25-LED blue LED module with a maximum operating temperature of 45°C and a minimum operating temperature of -10°C. It has a power consumption of 38W and operates at a supply voltage of 16V. The module measures 35.5mm in length and 4.3mm in height. It has a luminous flux of 350lm and a wavelength of 470nm.
PackageModule
Current Rating2.35A
Power38W
Quick Jump:
Technical Specifications
Enfis ENFISUNOTAGARRAYBLUE technical specifications.
General
| Package/Case | Module |
| Color | Blue |
| Current Rating | 2.35A |
| Height | 4.3mm |
| Length | 35.5mm |
| Luminous Flux | 350lm |
| Max Current Rating | 2.35A |
| Max Operating Temperature | 45°C |
| Min Operating Temperature | -10°C |
| Number of LEDs | 25 |
| Operating Supply Voltage | 16V |
| Power Consumption | 38W |
| Wavelength | 470nm |
| Width | 41mm |
Compliance
| RoHS | Compliant |
Datasheet
Enfis ENFISUNOTAGARRAYBLUE Datasheet
Download the complete datasheet for Enfis ENFISUNOTAGARRAYBLUE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
