Epson
TSX-322516.0000MF09Z-AC0
Crystal 16MHz ±10ppm (Tol) ±9ppm (Stability) 9pF FUND 60Ohm 4-Pin Mini-CSMD
Frequency16MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Epson TSX-322516.0000MF09Z-AC0 technical specifications.
General
Package/Case
SMD/SMT
Drive Level
200uW
ESR (Equivalent Series Resistance)
60R
Frequency
16MHz
Frequency Stability
9ppm
Frequency Tolerance
10ppm
Height
0.024inch
Lead Free
Lead Free
Length
0.126inch
Load Capacitance
9pF
Max Operating Temperature
75°C
Min Operating Temperature
-20°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
TSX-3225
Termination
SMD/SMT
Tolerance
10ppm
Weight
0.000564oz
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Epson TSX-322516.0000MF09Z-AC0 Datasheet
Download the complete datasheet for Epson TSX-322516.0000MF09Z-AC0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

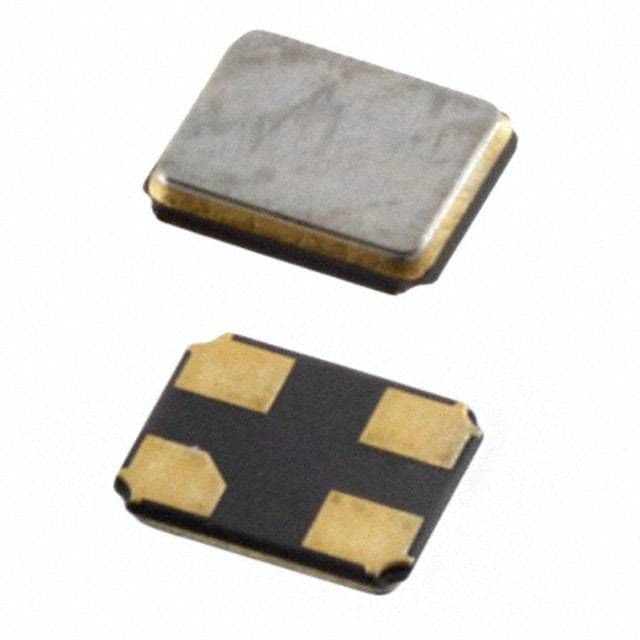

Product Images
