EPT
104-40075
EPT 104-40075 DIN 41612 Connector, Type C Series, 96 Contacts, Receptacle, 2.54 mm, 3 Row, a + b + c
Package104
MountingPCB
Quick Jump:
Technical Specifications
EPT 104-40075 technical specifications.
General
Package/Case
104
Color
Grey
Contact Material
Copper Alloy
Gender
Receptacle
Height
11.5mm
Length
10.5mm
Mating Cycles
400
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
PCB
Number of Contacts
96
Number of Rows
3
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
94.9mm
Compliance
RoHS
Compliant
Datasheet
EPT 104-40075 Datasheet
Download the complete datasheet for EPT 104-40075 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

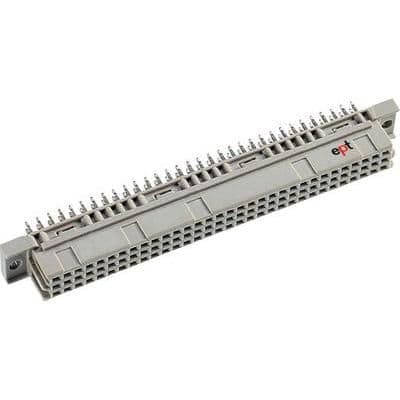

Product Images
