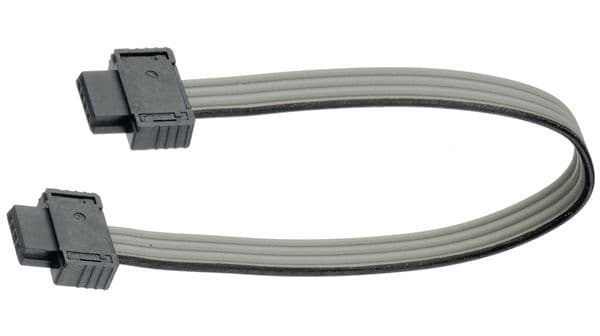

The MiniBridge Female 26AWG PVC Cable Assembly is a cable assembly with a maximum current rating of 2.8A and an operating temperature range of -20°C to 105°C. It features a female contact and is made with copper and tin-plated materials. The assembly is RoHS compliant and has a wire/cable gauge of 26AWG and type of PVC. It is available in a length of 300mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Erni 839021 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Material | Copper |
| Contact Plating | Tin |
| Gender | Female |
| Length | 300mm |
| Max Current Rating | 2.8A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| RoHS Compliant | Yes |
| Series | MiniBridge™ |
| Termination | IDT |
| Wire/Cable Gauge | 26AWG |
| Wire/Cable Type | PVC |
| RoHS | Compliant |
Download the complete datasheet for Erni 839021 to view detailed technical specifications.
