Everlight
6N136S(TA)-V
Logic IC Output Optocoupler, 1-Element, 5000V Isolation, 1MBps, ROHS COMPLIANT, SURFACE MOUNT, DIP-8
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Everlight 6N136S(TA)-V technical specifications.
General
Approvals
UL
Package/Case
SMD/SMT
Collector Emitter Breakdown Voltage
20V
Current Transfer Ratio
19%
Fall Time
0.8us
Forward Current
25mA
Input Type
DC
Max Collector Current
8mA
Max Input Current
25mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
20V
Max Power Dissipation
100mW
Mount
Surface Mount
Number of Channels
1
Output Current per Channel
8mA
Package Quantity
1000
Packaging
Tape and Reel
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Everlight 6N136S(TA)-V Datasheet
Download the complete datasheet for Everlight 6N136S(TA)-V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

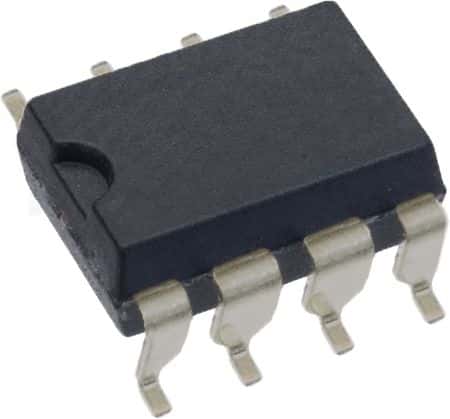

Product Images
