Everlight
6N136S1(TA)
Logic IC Output Optocoupler, 1-Element, 5000V Isolation, 1MBps, ROHS COMPLIANT, SURFACE MOUNT, DIP-8
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Everlight 6N136S1(TA) technical specifications.
General
Package/Case
SMD/SMT
Current Transfer Ratio
19%
Fall Time
0.8us
Forward Current
25mA
Input Type
DC
Max Collector Current
8mA
Max Input Current
25mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
20V
Max Power Dissipation
100mW
Mount
Surface Mount
Number of Channels
1
Output Current per Channel
8mA
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Everlight 6N136S1(TA) Datasheet
Download the complete datasheet for Everlight 6N136S1(TA) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

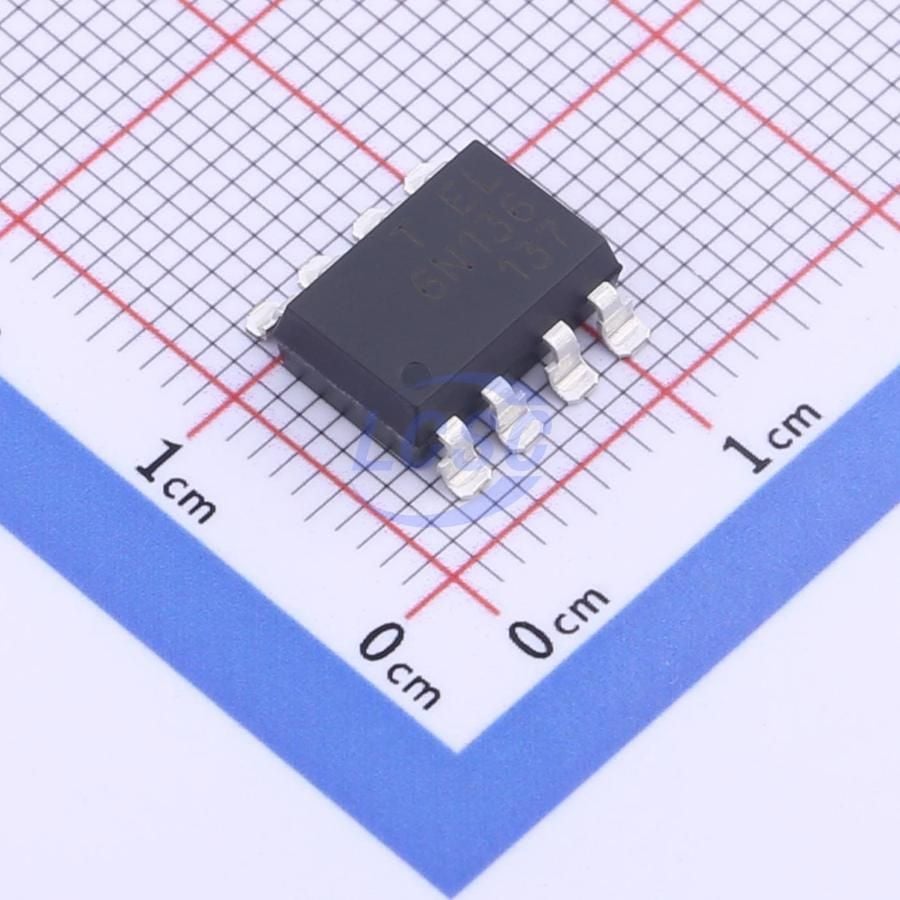

Product Images
