Everlight
6N137S(TA)-V
Logic IC Output Optocoupler, 1-Element, 5000V Isolation, 10MBps, ROHS COMPLIANT, SURFACE MOUNT, DIP-8
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Everlight 6N137S(TA)-V technical specifications.
General
Approvals
UL
Package/Case
SMD/SMT
Collector Emitter Breakdown Voltage
7V
Data Rate
10Mbps
Direction
Unidirectional
Fall Time
75ns
Forward Current
50mA
Input Type
DC
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
100mW
Mount
Surface Mount
Number of Channels
1
Output Current per Channel
50mA
Package Quantity
1000
Packaging
Tape and Reel
Propagation Delay
75ns
RoHS Compliant
Yes
Turn-On Delay Time
75ns
Compliance
RoHS
Compliant
Datasheet
Everlight 6N137S(TA)-V Datasheet
Download the complete datasheet for Everlight 6N137S(TA)-V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

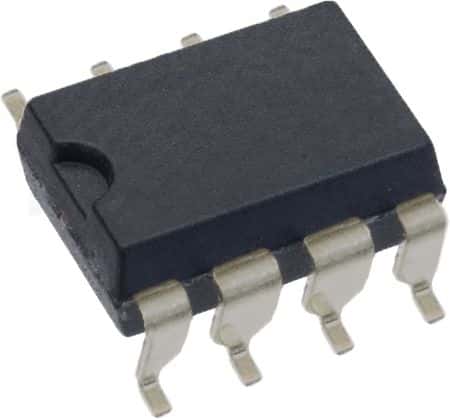

Product Images
