EVERLIGHT

EL1018(TA)-VG

Datasheet

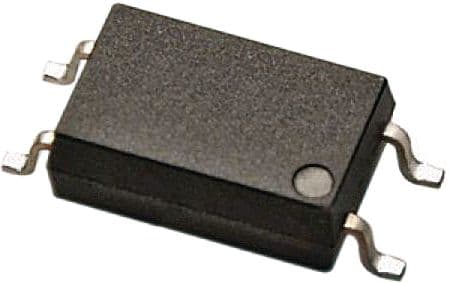

Transistor Optocoupler, 80V VCEO, 50mA, 5000V Iso, SOP-4, SMD

Everlight

EL1018(TA)-VG

Name: EL1018(TA)-VG Everlight
Brand: Everlight
SKU: EL1018(TA)-VG

Transistor Optocoupler, 80V VCEO, 50mA, 5000V Iso, SOP-4, SMD

General purpose transistor output optocoupler featuring 5000V isolation and a 1-element, NPN transistor output. This surface mount device offers a 260% current transfer ratio, 80V collector-emitter breakdown voltage, and 50mA maximum collector current. Operating across a wide temperature range of -55°C to 110°C, it supports up to 60mA forward current and has a maximum power dissipation of 250mW. VDE approved and RoHS compliant, it is supplied in tape and reel packaging.

PackageSMD/SMT

MountingSurface Mount

PolarityNPN

Power250mW

Quick Jump:

Technical Specifications

Everlight EL1018(TA)-VG technical specifications.

General

Approvals	VDE
Package/Case	SMD/SMT
Collector Emitter Breakdown Voltage	80V
Collector Emitter Saturation Voltage	300mV
Collector Emitter Voltage (VCEO)	80V
Collector-emitter Voltage-Max	300mV
Current Transfer Ratio	260%
Fall Time	18000ns
Forward Current	60mA
Input Current	50mA
Input Type	DC
Max Collector Current	50mA
Max Input Current	60mA
Max Operating Temperature	110°C
Min Operating Temperature	-55°C
Max Power Dissipation	250mW
Mount	Surface Mount
Number of Channels	1
Number of Elements	1
Output Current per Channel	50mA
Output Voltage	80V
Package Quantity	2000
Packaging	Tape and Reel
Polarity	NPN
Power Dissipation	250mW
Reverse Breakdown Voltage	6V
RoHS Compliant	Yes
