General purpose optocoupler featuring a 1-channel NPN transistor output in a surface mount SOP package. Offers 5kV isolation voltage and 80V collector-emitter breakdown voltage. Maximum forward current is 60mA with a maximum collector current of 50mA. Operating temperature range spans -55°C to 110°C. VDE approved and RoHS compliant.
PackageSOP
MountingSurface Mount
PolarityNPN
Quick Jump:
Technical Specifications
Everlight EL1113(TA)-VG technical specifications.
General
Approvals
VDE
Package/Case
SOP
Collector Emitter Breakdown Voltage
80V
Collector Emitter Saturation Voltage
400mV
Collector-emitter Voltage-Max
400mV
Forward Current
60mA
Input Current
50mA
Input Type
DC
Isolation Voltage
5kV
Max Collector Current
50mA
Max Input Current
60mA
Max Operating Temperature
110°C
Min Operating Temperature
-55°C
Max Output Voltage
80V
Max Power Dissipation
250mW
Mount
Surface Mount
Number of Channels
1
Output Current per Channel
50mA
Output Voltage
80V
Package Quantity
2000
Packaging
Tape and Reel
Polarity
NPN
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Everlight EL1113(TA)-VG Datasheet
Download the complete datasheet for Everlight EL1113(TA)-VG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

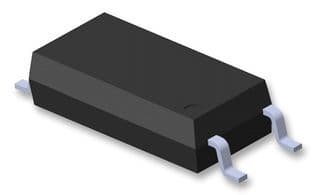

Product Images
