Everlight
EL1117(TA)-VG
Transistor Output Optocoupler, 1-Element, 5000V Isolation, HALOGEN FREE AND ROHS COMPLIANT, SOP-5
PackageSOP
MountingSurface Mount
PolarityNPN
Power250mW
Quick Jump:
Technical Specifications
Everlight EL1117(TA)-VG technical specifications.
General
Package/Case
SOP
Collector Emitter Saturation Voltage
400mV
Collector-emitter Voltage-Max
400mV
Input Current
50mA
Input Type
DC
Isolation Voltage
5kV
Max Collector Current
50mA
Max Input Current
60mA
Max Operating Temperature
110°C
Min Operating Temperature
-55°C
Max Output Voltage
80V
Max Power Dissipation
250mW
Mount
Surface Mount
Number of Channels
1
Output Current per Channel
50mA
Output Voltage
80V
Package Quantity
2000
Packaging
Tape and Reel
Polarity
NPN
Power Consumption
250mW
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Everlight EL1117(TA)-VG Datasheet
Download the complete datasheet for Everlight EL1117(TA)-VG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

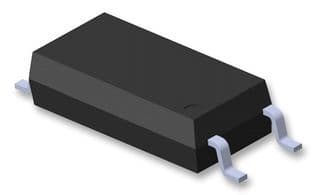

Product Images
