PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Everlight EL357N(TA)-G technical specifications.
General
Approvals
UL
Package/Case
SMD/SMT
Collector Emitter Breakdown Voltage
80V
Collector Emitter Saturation Voltage
200mV
Collector-emitter Voltage-Max
200mV
Input Type
DC
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
110°C
Min Operating Temperature
-55°C
Max Power Dissipation
200mW
Mount
Surface Mount
Number of Channels
1
Output Current per Channel
50mA
Output Voltage
80V
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Everlight EL357N(TA)-G Datasheet
Download the complete datasheet for Everlight EL357N(TA)-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

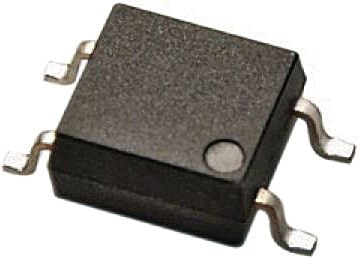

Product Images
