PackagePDIP
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
Everlight EL815 technical specifications.
General
Package/Case
PDIP
Collector Emitter Saturation Voltage
1V
Collector Emitter Voltage (VCEO)
35V
Collector-emitter Voltage-Max
1V
Current Transfer Ratio
7500%
Fall Time
250000ns
Forward Current
60mA
Input Type
DC
Max Collector Current
80mA
Max Operating Temperature
110°C
Min Operating Temperature
-55°C
Max Output Voltage
35V
Max Power Dissipation
200mW
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
1kV
Output Current per Channel
80mA
Package Quantity
1000
Packaging
Rail/Tube
Power Dissipation
200mW
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Everlight EL815 Datasheet
Download the complete datasheet for Everlight EL815 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

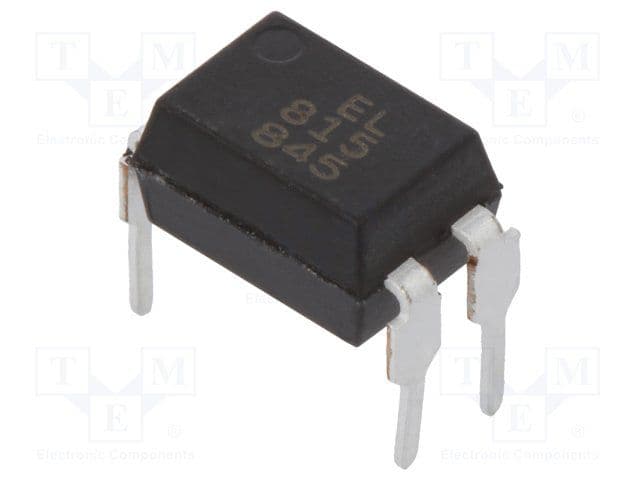

Product Images
