PackageAxial
Resistance2.8R
Inductance150uH
Quick Jump:
Technical Specifications
Fastron SMCC-151J-02 technical specifications.
General
Package/Case
Axial
Core Material
Ferrite
DC Resistance (DCR)
2.8R
Inductance
150uH
Length
9.5mm
Material
Steel
Max DC Current
280mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Q Factor
70
Resistance
2.8R
RoHS Compliant
Yes
Sample Rate (Hz)
70MHz
Self Resonant Frequency
4.2MHz
Termination
Axial
Tolerance
5%
Compliance
RoHS
Compliant
Datasheet
Fastron SMCC-151J-02 Datasheet
Download the complete datasheet for Fastron SMCC-151J-02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

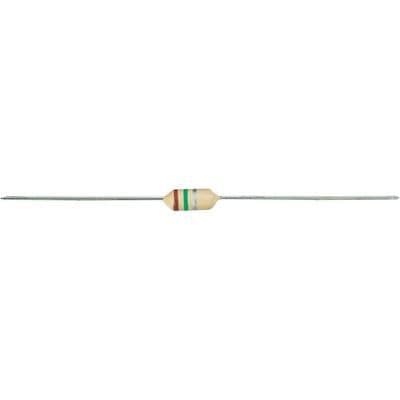

Product Images
