Finder
39.11.8.230.0060
FINDER 39.11.8.230.0060 General Purpose Relay, 39 Series, Interface, SPDT, 230 VAC, 6 A
PackageModule
MountingDIN Rail
Quick Jump:
Technical Specifications
Finder 39.11.8.230.0060 technical specifications.
General
Package/Case
Module
Coil Voltage (AC)
230V
Contact Current Rating
6A
Contact Material
Silver
Contact Type
SPDT-CO
Depth
90.7mm
Height
90.7mm
Input Current
4.3mA
Length
87mm
Min Input Voltage
230V
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
DIN Rail
Ratings
IP20
Reach SVHC Compliant
No
Switching Current
6A
Termination
Screw
Throw Configuration
SPDT
Turn-Off Delay Time
6ms
Turn-On Delay Time
5ms
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Finder 39.11.8.230.0060 Datasheet
Download the complete datasheet for Finder 39.11.8.230.0060 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

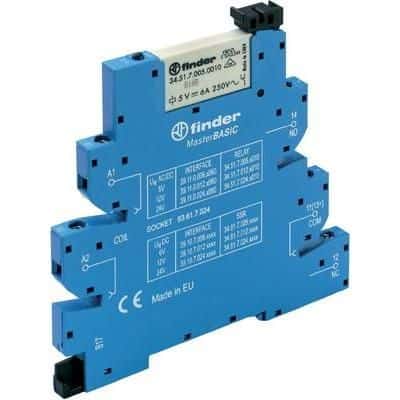

Product Images
