PackageTO-220
MountingScrew
Quick Jump:
Technical Specifications
Fischer Elektronik FK220SA-220 technical specifications.
General
| Package/Case | TO-220 |
| Color | Black |
| Depth | 7mm |
| Finish | Anodized |
| Height | 7mm |
| Length | 25mm |
| Material | Aluminium |
| Mount | Screw |
| Natural Thermal Resistance | 25°C/W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Type | Passive |
| Width | 20.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Fischer Elektronik FK220SA-220 Datasheet
Download the complete datasheet for Fischer Elektronik FK220SA-220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

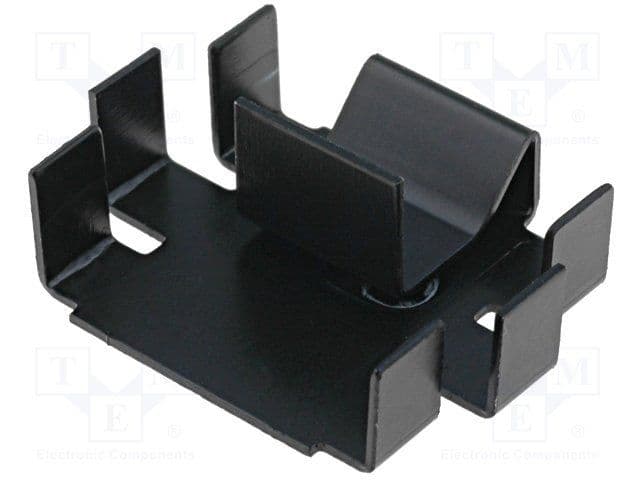

Product Images
