Fischer Elektronik
SL22.124.72G
FISCHER ELEKTRONIK SL22.124.72 G Wire-To-Board Connector, SL Series, 72 Contacts, Plug, 2.54 mm, Through Hole, 2 Rows
Quick Jump:
Technical Specifications
Fischer Elektronik SL22.124.72G technical specifications.
General
Contact Material
Gold, Copper, Tin, Bronze
Contact Plating
Gold
Depth
5mm
Flammability Rating
UL94 V-0
Gender
Male
Length
182.88mm
Max Current Rating
3A
Max Voltage Rating (AC)
250V
Number of Contacts
72
Number of Rows
2
Orientation
Straight
Pitch
2.54mm
Reach SVHC Compliant
No
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
Fischer Elektronik SL22.124.72G Datasheet
Download the complete datasheet for Fischer Elektronik SL22.124.72G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

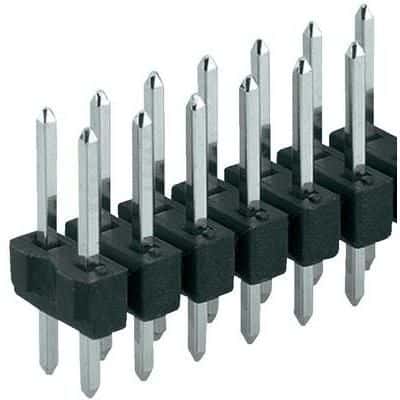

Product Images
