Furse
ESP06E
SURGE PROTECTOR, 2 WIRE, 6V, ENHANCED; Series:ESP; Suppressor Type:Data Line; Outlet Type:-; Voltage Rating:6V; Output Current:1.25A; Peak Surge Current:10kA; Response Time:10ns; SVHC:No SVHC (16-Jun-2014)
Resistance1R
Voltage Rating6V
Quick Jump:
Technical Specifications
Furse ESP06E technical specifications.
General
Bandwidth
1.5MHz
Max Forward Surge Current (Ifsm)
1.25A
Max Input Voltage
7.79V
Max Surge Current
10kA
Output Current
1.25A
Reach SVHC Compliant
No
Resistance
1R
Response Time
10ns
Series
ESP
Voltage Rating
6V
Width
120mm
Compliance
RoHS
Not Compliant
Datasheet
Furse ESP06E Datasheet
Download the complete datasheet for Furse ESP06E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

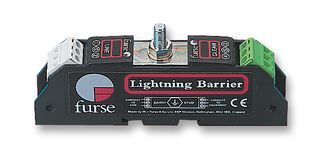

Product Images
