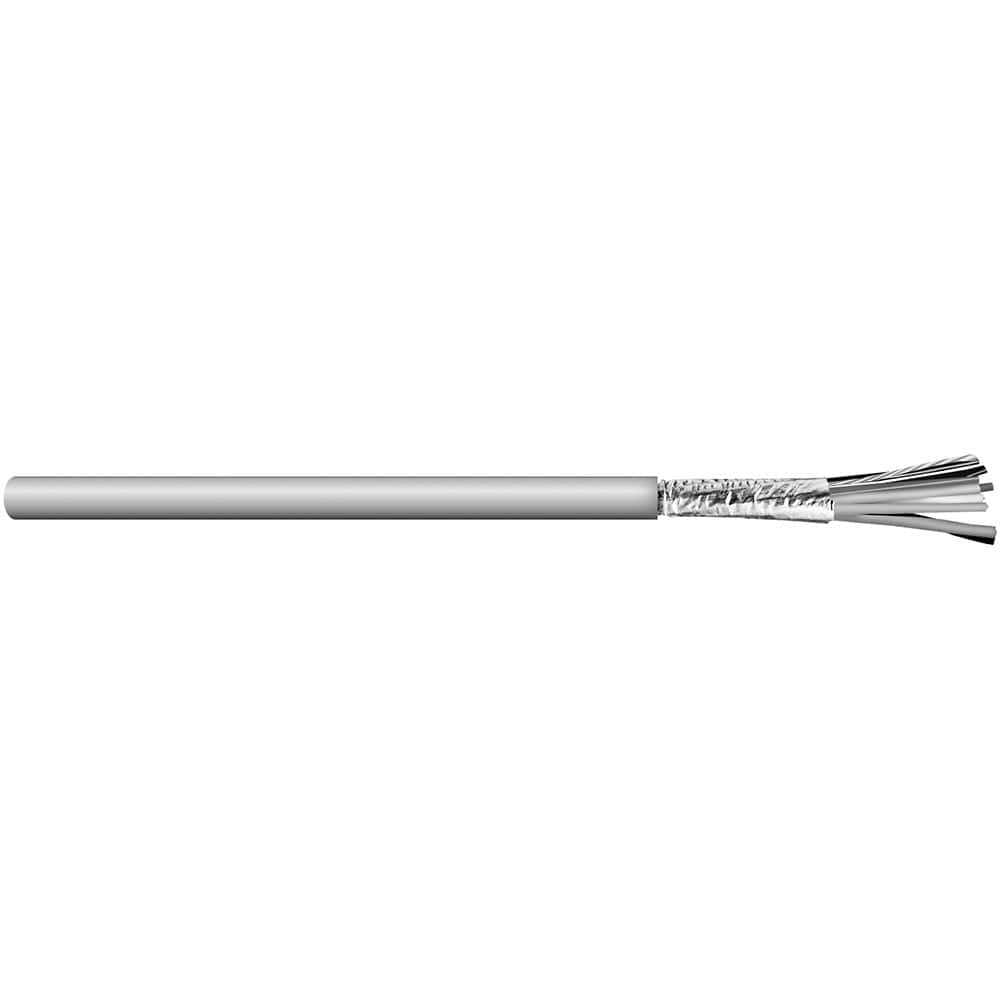

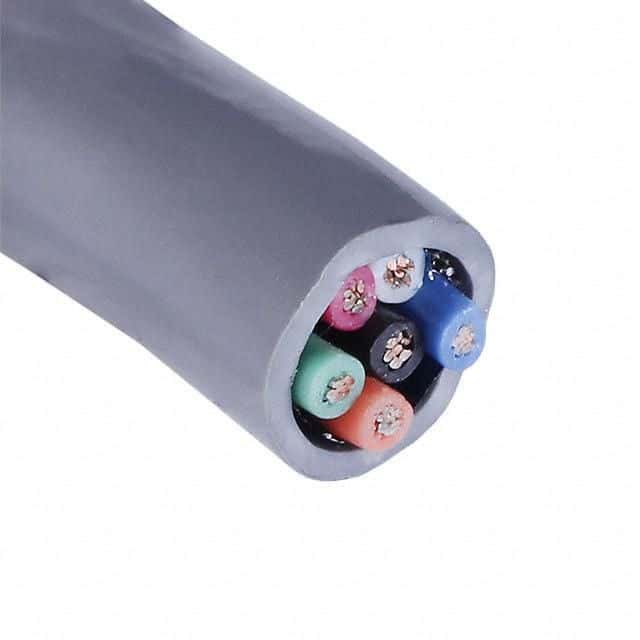

Multi-conductor cable featuring 6 conductors, each 20AWG stranded copper (7x28). Insulated with grey PVC (0.032-inch thickness, 0.276-inch diameter) and a grey PVC jacket, this cable has an outside diameter of 7.01mm. Rated for 300V, it operates within a temperature range of -20°C to 80°C. Available in a 500-foot length.
Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
General Cable C0783A.41.10 technical specifications.
General
Package/Case
100
Color
Grey
Conductor Material
Copper
Insulation Diameter
0.276inch
Insulation Material
PVC
Insulation Thickness
0.032inch
Jacket Material
PVC
Length
500foot
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
6
Outside Diameter
7.01mm
Package Quantity
1
Reach SVHC Compliant
Unknown
Stranding
7X28
Voltage
300V
Voltage Rating
300V
DC Rated Voltage
300V
Wire/Cable Gauge
20AWG
Wire/Cable Type
Multi-Conductor
Compliance
RoHS
Compliant
Datasheet
General Cable C0783A.41.10 Datasheet
Download the complete datasheet for General Cable C0783A.41.10 to view detailed technical specifications.
