15-position, 2-row D-subminiature connector with male solder terminals and a right-angle, through-hole mount. Features copper alloy contacts with gold plating, a nickel-plated aluminum shell, and polymer insulation. Rated for 3A current and operates between -55°C and 150°C. Dimensions include a 2.54mm pitch, 7.8mm width, 15.6mm depth, and 23.7mm length.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Glenair MWDM2L-15PCBRP-.110 technical specifications.
General
Contact Material
Copper Alloy, Copper
Contact Plating
Gold
Current Rating
3A
Depth
15.6mm
Gender
Male
Insulation
Insulated
Insulation Material
Polymer
Length
23.7mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
15
Number of Ports
1
Number of Positions
15
Number of Rows
2
Orientation
Right Angle
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Plating
Nickel
RoHS Compliant
No
Series
MWDM
Shell Material
Aluminium
Termination
Solder
Width
7.8mm
Compliance
RoHS
Not Compliant
Datasheet
Glenair MWDM2L-15PCBRP-.110 Datasheet
Download the complete datasheet for Glenair MWDM2L-15PCBRP-.110 to view detailed technical specifications.
No datasheet is available for this part.

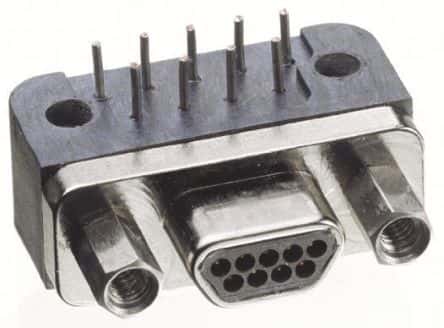

Product Images
