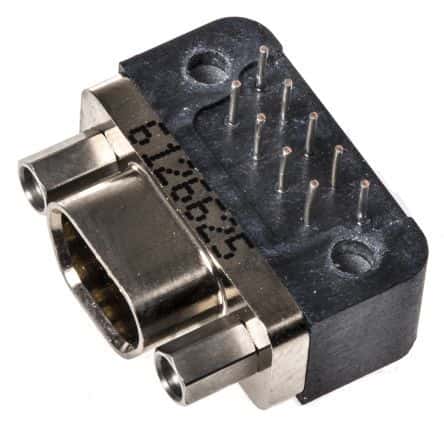

Right-angle receptacle connector featuring 9 positions across 2 rows. Contacts are copper alloy with gold plating, rated for 3A current. The insulated polymer insulation and aluminium shell provide robust performance from -55°C to 150°C. Mounting is via through-hole termination with a 2.54mm pitch.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Glenair MWDM2L-9SCBRP-.110 technical specifications.
General
Contact Material
Copper, Copper Alloy
Contact Plating
Gold
Current Rating
3A
Depth
15.6mm
Gender
Female
Insulation
Insulated
Insulation Material
Polymer
Length
19.9mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
9
Number of Ports
1
Number of Positions
9
Number of Rows
2
Orientation
Right Angle
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Plating
Nickel
RoHS Compliant
No
Series
MWDM
Shell Material
Aluminium
Termination
Solder
Width
7.8mm
Compliance
RoHS
Not Compliant
Datasheet
Glenair MWDM2L-9SCBRP-.110 Datasheet
Download the complete datasheet for Glenair MWDM2L-9SCBRP-.110 to view detailed technical specifications.
No datasheet is available for this part.

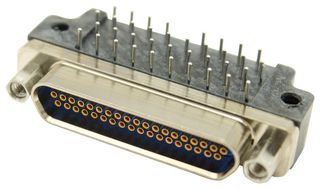

Product Images
