11-position, single-row male header connector with a 2.54mm pitch. Features gold-plated bronze square pins for mating, a right-angle orientation, and surface mount termination. Constructed with a black glass-filled nylon housing and rated UL94 V-0 for flammability. Operates within a temperature range of -40°C to 105°C.
Quick Jump:
Technical Specifications
Molex 0015912115 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Depth | 13.59mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Glass |
| Length | 31.75mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Number of Contacts | 11 |
| Number of Positions | 11 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SL 70634 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Molex 0015912115 Datasheet
Download the complete datasheet for Molex 0015912115 to view detailed technical specifications.
No datasheet is available for this part.

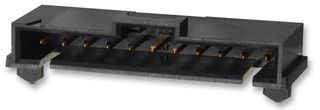

Product Images
