Rectangular power connector featuring a straight, through-hole mount design with 5 contacts and 5 positions. Constructed with a natural colored Nylon housing, it utilizes Brass contacts with Tin plating, offering a 7A current rating and 250V voltage rating. The connector operates within a temperature range of 0°C to 75°C and has a lead pitch of 5.08mm. This RoHS compliant component is supplied in bulk packaging.
Voltage Rating250V
Current Rating7A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 10-08-1051 technical specifications.
General
| Color | Natural |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 7A |
| Depth | 6.35mm |
| Flammability Rating | UL94 V-2 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Lead Pitch | 5.08mm |
| Length | 25.15mm |
| Material | Nylon |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Poles | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 5000 |
| Packaging | Bulk |
| Pitch | 5.08mm |
| Plating | Tin |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 3003 |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 10-08-1051 Datasheet
Download the complete datasheet for Molex 10-08-1051 to view detailed technical specifications.
No datasheet is available for this part.

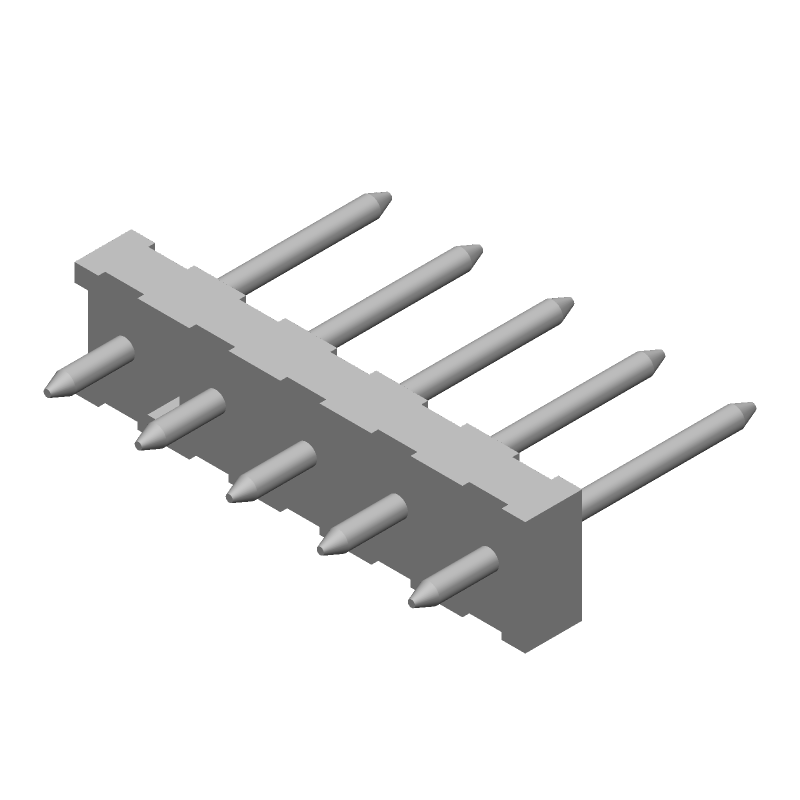

Product Images
