MOLEX

10-89-7261

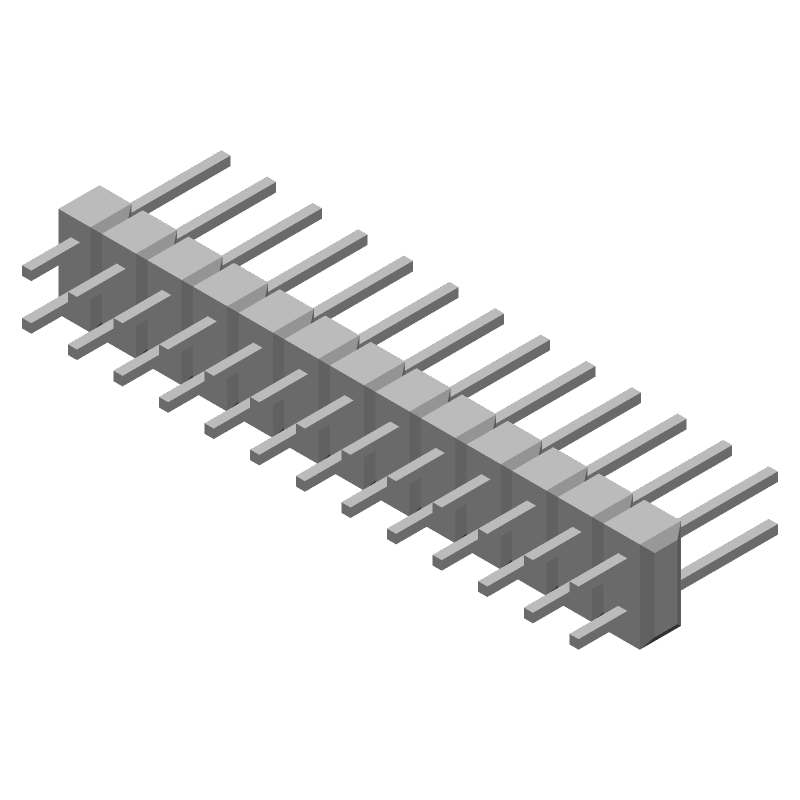

26 Pos 2 Row 2.54mm Pitch Male Header Connector

Molex

10-89-7261

Name: 10-89-7261 Molex
Brand: Molex
SKU: 10-89-7261

26 Pos 2 Row 2.54mm Pitch Male Header Connector

2.54mm pitch male pin header connector, featuring 26 contacts arranged in 2 rows. This straight, through-hole mount receptacle offers a 3A current rating and 250V voltage rating. Constructed with brass and copper alloy contacts with tin plating, it operates within a -40°C to 105°C temperature range. The black, low halogen housing meets UL94 V-0 flammability standards and is RoHS compliant.

Voltage Rating250V

Current Rating3A

MountingThrough Hole

Quick Jump:

Technical Specifications

Molex 10-89-7261 technical specifications.

General

Color	Black
Contact Material	Brass, Copper Alloy
Contact Mating Length	0.24inch
Contact Plating	Tin
Contact Type	Male Pin
Current Rating	3A
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Housing Color	Black
Lead Free	Lead Free
Material	Copper Alloy
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Mount	Through Hole
Number of Circuits	26
Number of Contacts	26
Number of Positions	26
Number of Rows	2
Orientation	Straight
Package Quantity	1
Packaging	Bulk
Pitch	2.54mm
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	0.1inch
Series	C-Grid® 70280
Termination	Through Hole
Voltage Rating	250V
