7-contact, single-row female header with a 2.5mm pitch, designed for board-to-board applications. Features straight orientation and solder termination with a 1A current rating and 200V voltage rating. Constructed with PBT, Polyester, and Polybutylene actuator material and bronze contacts with tin plating. Operates within a temperature range of -20°C to 80°C and boasts a UL94 V-0 flammability rating.
Voltage Rating200V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 39-53-2075 technical specifications.
General
| Actuator Material | PBT, Polyester, Polybutylene |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 1A |
| Depth | 5mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Natural |
| Length | 14.5mm |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Contacts | 7 |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1400 |
| Packaging | Tray |
| Pitch | 2.5mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 5597 |
| Termination | Solder |
| Voltage Rating | 200V |
| Wire/Cable Type | Straight |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-53-2075 Datasheet
Download the complete datasheet for Molex 39-53-2075 to view detailed technical specifications.
No datasheet is available for this part.

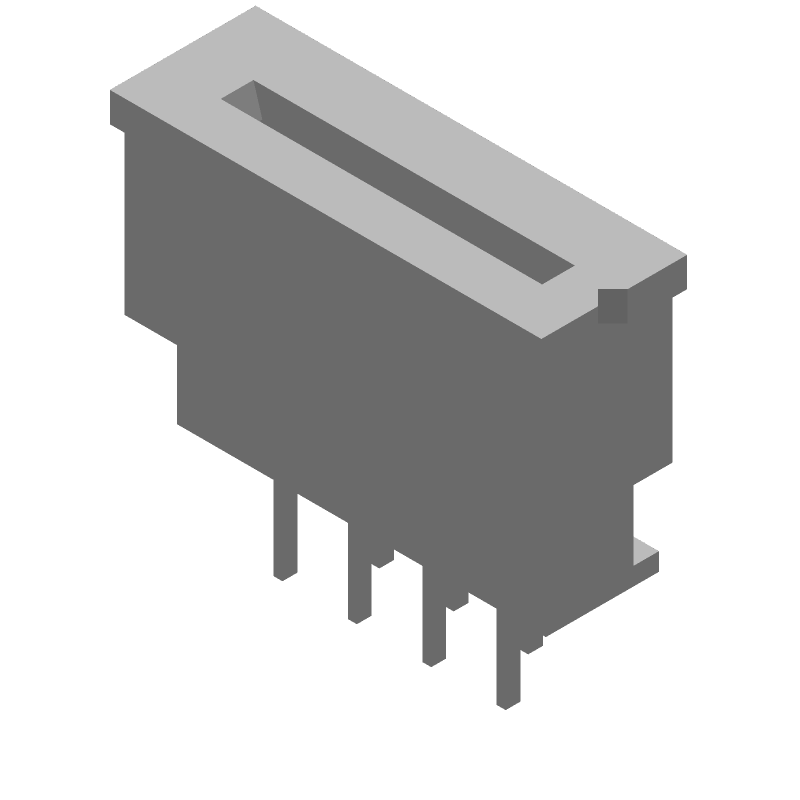

Product Images
