3-circuit, 1-row male header with a 2.54mm pitch, designed for through-hole mounting. Features gold-plated bronze and copper contacts, a 3A current rating, and a 250V voltage rating. Constructed with a black brass insulator and a guide slot, this connector operates within a temperature range of -40°C to 105°C. It is RoHS compliant and UL94 V-0 flammability rated.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 70545-0037 technical specifications.
General
| Color | Black |
| Contact Gender | Male |
| Contact Material | Bronze, Copper |
| Contact Plating | Gold |
| Current Rating | 3A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Lead Free | Lead Free |
| Material | Brass |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 1680 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 70545 |
| Termination | Solder |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 70545-0037 Datasheet
Download the complete datasheet for Molex 70545-0037 to view detailed technical specifications.
No datasheet is available for this part.

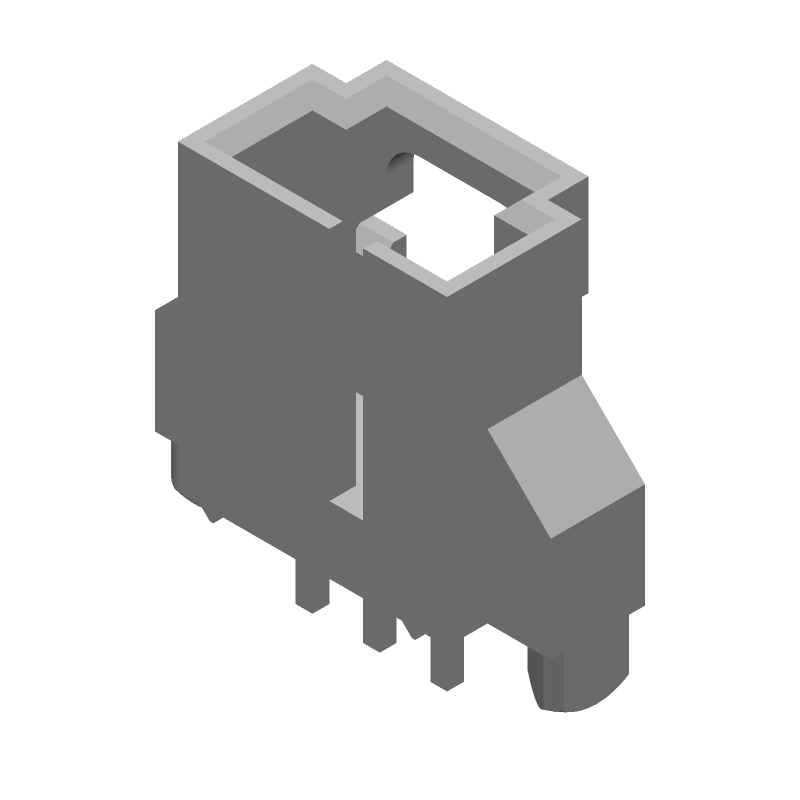

Product Images
