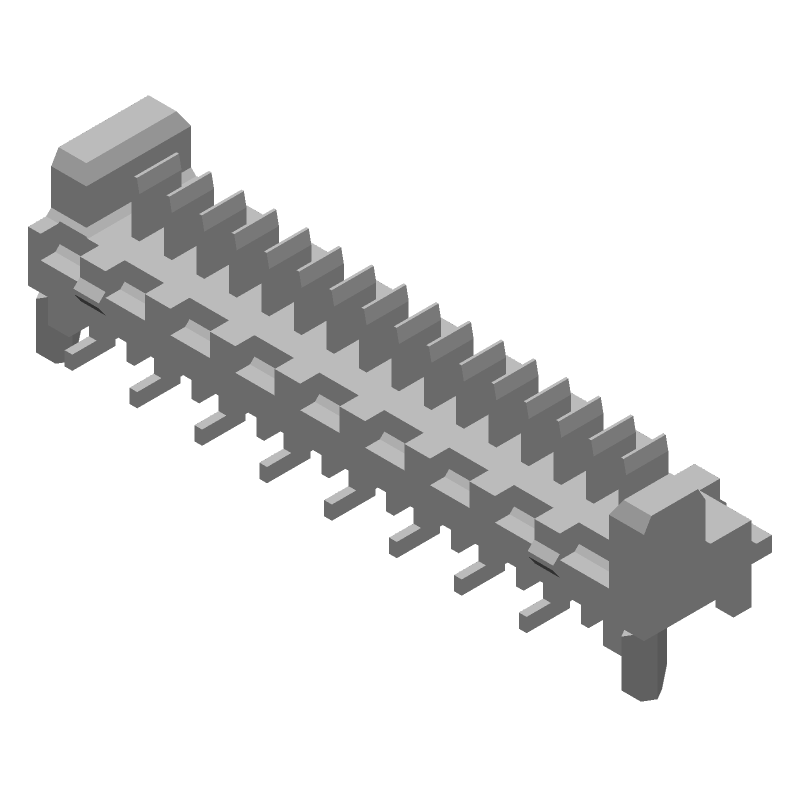

1.27mm pitch shrouded header with 16 positions and 16 circuits. Features brass contacts with tin plating, rated for 2.4A current and 250V voltage. Designed for vertical, surface mount (SMD/SMT) termination with a single row configuration. Operating temperature range from -40°C to 105°C. Packaged in tubes for efficient assembly.
Voltage Rating250V
Current Rating2.4A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 90814-0816 technical specifications.
General
| Contact Gender | Male |
| Contact Material | Brass, Tin |
| Contact Plating | Tin |
| Current Rating | 2.4A |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Lead Pitch | 1.27mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Surface Mount |
| Number of Circuits | 16 |
| Number of Contacts | 16 |
| Number of Positions | 16 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 3168 |
| Packaging | Rail/Tube |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 90814 |
| Termination | SMD/SMT |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 90814-0816 Datasheet
Download the complete datasheet for Molex 90814-0816 to view detailed technical specifications.
No datasheet is available for this part.
