Single color green LED emitter, featuring a 7mm package with a 5mm diffused, tinted, round, domed, colored lens. This through-hole component operates at a forward current of 20mA and a voltage rating of 2.2V, producing a luminous intensity of 9mcd at a 565nm wavelength. With a wide 110° viewing angle and a maximum operating temperature of 85°C, it is RoHS compliant and lead-free.
Current20mA
Voltage Rating2.2V
MountingThrough Hole
Quick Jump:
Technical Specifications
Lumex SSF-LXH25780GD technical specifications.
General
| Color | Green |
| Current | 20mA |
| Forward Current | 20mA |
| Height | 10.16mm |
| Illumination Color | Green |
| Lead Free | Lead Free |
| Length | 13.9mm |
| Lens Color | Green |
| Lens Size | 5mm |
| Lens Style | Diffused, Tinted, Round, Domed, Colored |
| Luminous Intensity | 9mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of LEDs | 1 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Angle | 110° |
| Voltage Rating | 2.2V |
| Wavelength | 565nm |
| Width | 3.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Lumex SSF-LXH25780GD Datasheet
Download the complete datasheet for Lumex SSF-LXH25780GD to view detailed technical specifications.
No datasheet is available for this part.

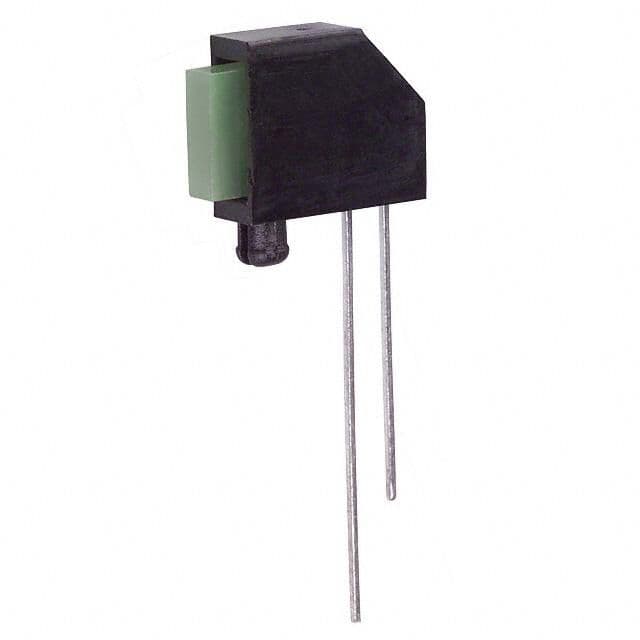

Product Images
