This 9-position, 3-row through hole female connector features 9 contacts and a 2.54mm pitch. It is designed for use in applications where high-temperature operation is required, with a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. The connector is made of bronze with a gold plating and has a gold finish on the mating contacts. It is rated for 100 mating cycles and is compliant with RoHS regulations. The connector is packaged in bulk and has a flammability rating of UL94 V-0.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SSW-103-22-G-T technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Forked |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Mating Cycles | 100 |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 9 |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SSW |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SSW-103-22-G-T Datasheet
Download the complete datasheet for Samtec SSW-103-22-G-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

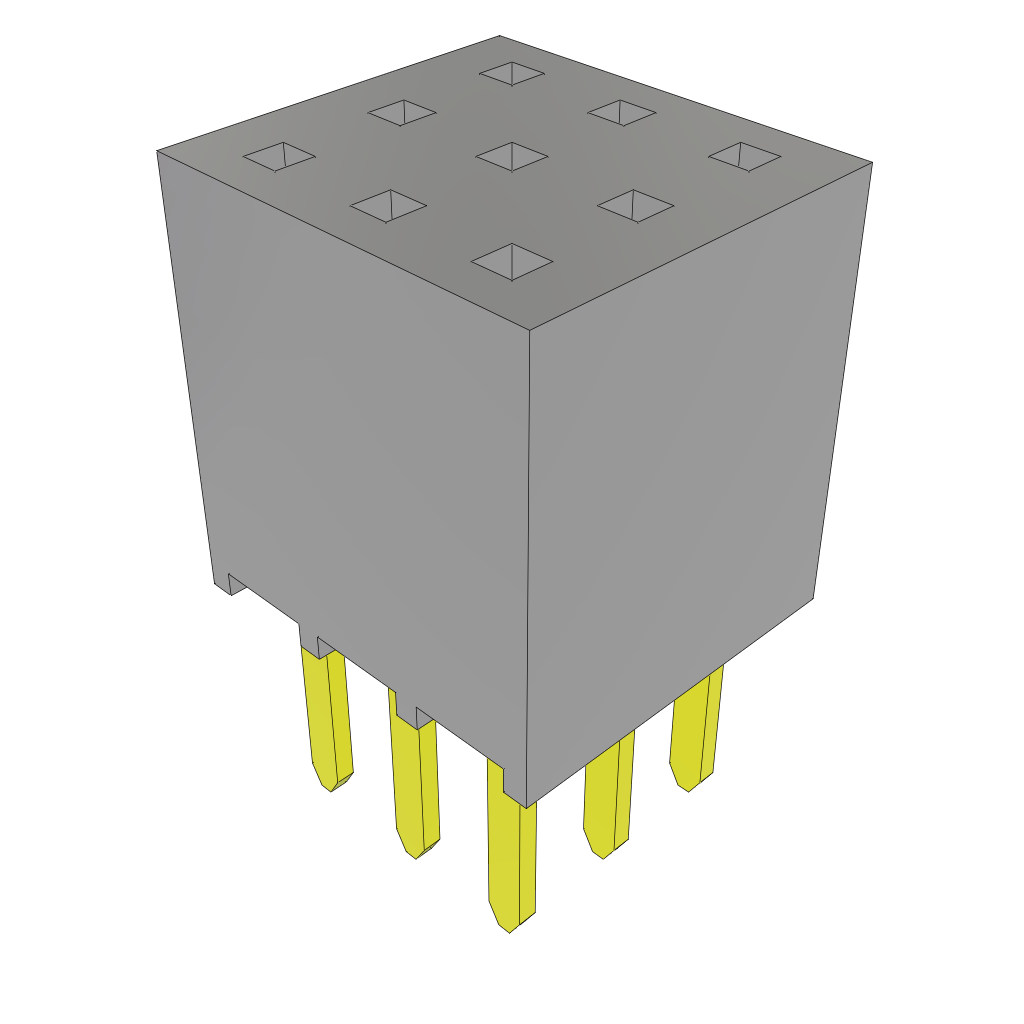

Product Images
