This 4-contact male header features a bronze contact material with gold plating, suitable for applications up to 1A and 125°C. It has a length of 2.54mm and a pitch of 1.27mm, with a straight orientation. The header is packaged in bulk and is RoHS compliant, making it suitable for a wide range of applications.
Quick Jump:
Technical Specifications
Samtec TMS-102-01-S-D technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 4.98mm |
| Gender | Male |
| Housing Color | Black |
| Length | 2.54mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Contacts | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TMS-102-01-S-D Datasheet
Download the complete datasheet for Samtec TMS-102-01-S-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

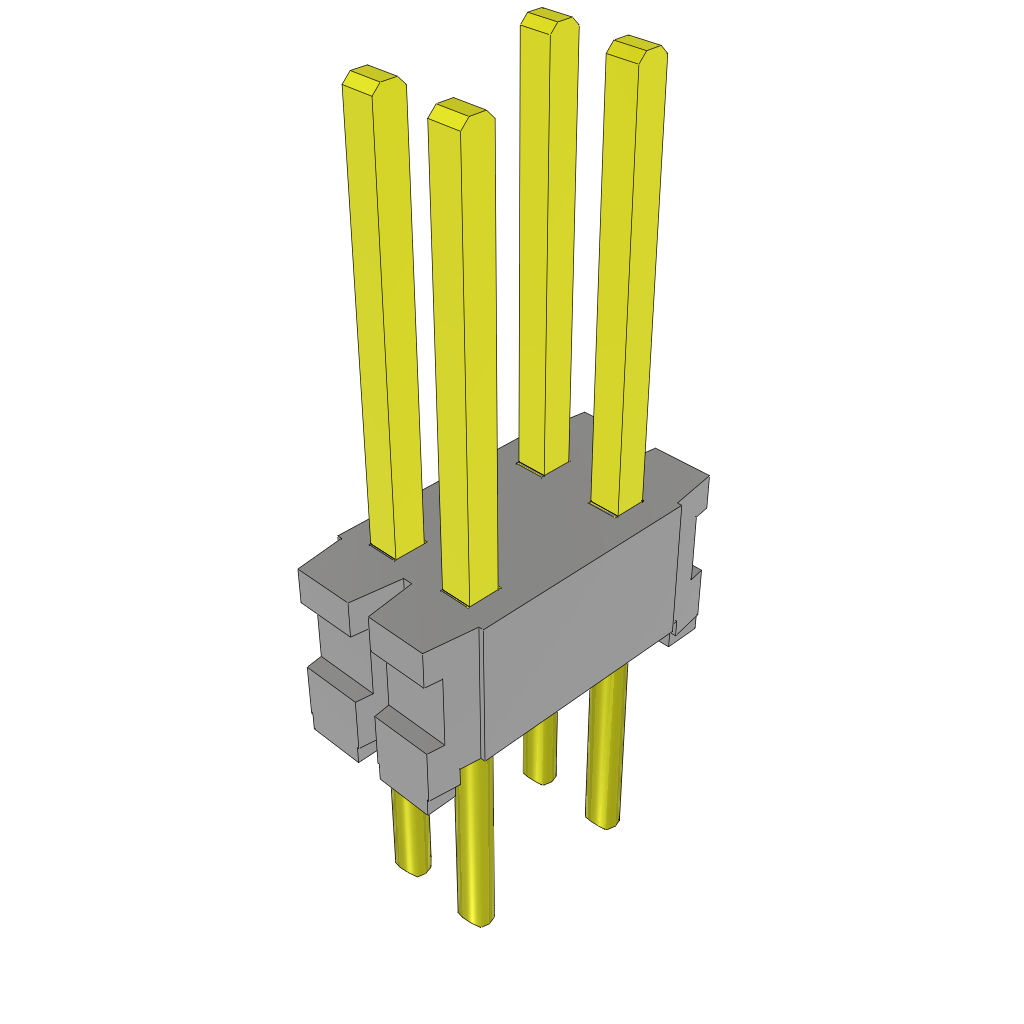

Product Images
