Voltage Rating250V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harting 09-03-164-6922 technical specifications.
General
Contact Material
Copper Alloy, Copper, Nickel, Gold
Contact Plating
Gold
Current Rating
2A
Flammability Rating
UL94 V-0
Gender
Male
Insulation Material
Glass
Lead Pitch
2.54mm
Length
94mm
Material
Glass, Polyester
Mating Cycles
400
Max Current Rating
2A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
64
Number of Positions
96
Number of Positions Loaded
64
Number of Rows
3
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DIN 41612
Termination
Solder
Test Voltage
1kV
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Harting 09-03-164-6922 Datasheet
Download the complete datasheet for Harting 09-03-164-6922 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

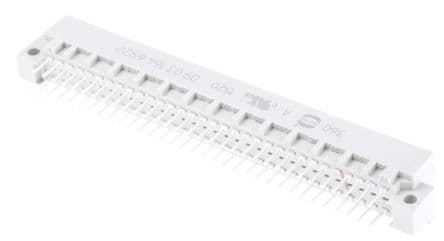

Product Images
