Technical Specifications

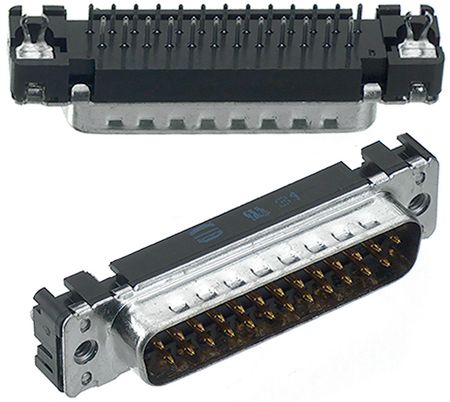

Harting 09-65-461-6712 technical specifications.
General
| Contact Material | Copper Alloy, Nickel, Gold |
| Contact Plating | Gold |
| Current Rating | 7.5A |
| Depth | 12.5mm |
| Gender | Male |
| Length | 69.7mm |
| Mating Cycles | 250 |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 37 |
| Number of Rows | 2 |
| Orientation | Straight |
| Pitch | 2.76mm |
Compliance
| RoHS | Compliant |
Datasheet
Harting 09-65-461-6712 Datasheet
Download the complete datasheet for Harting 09-65-461-6712 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
